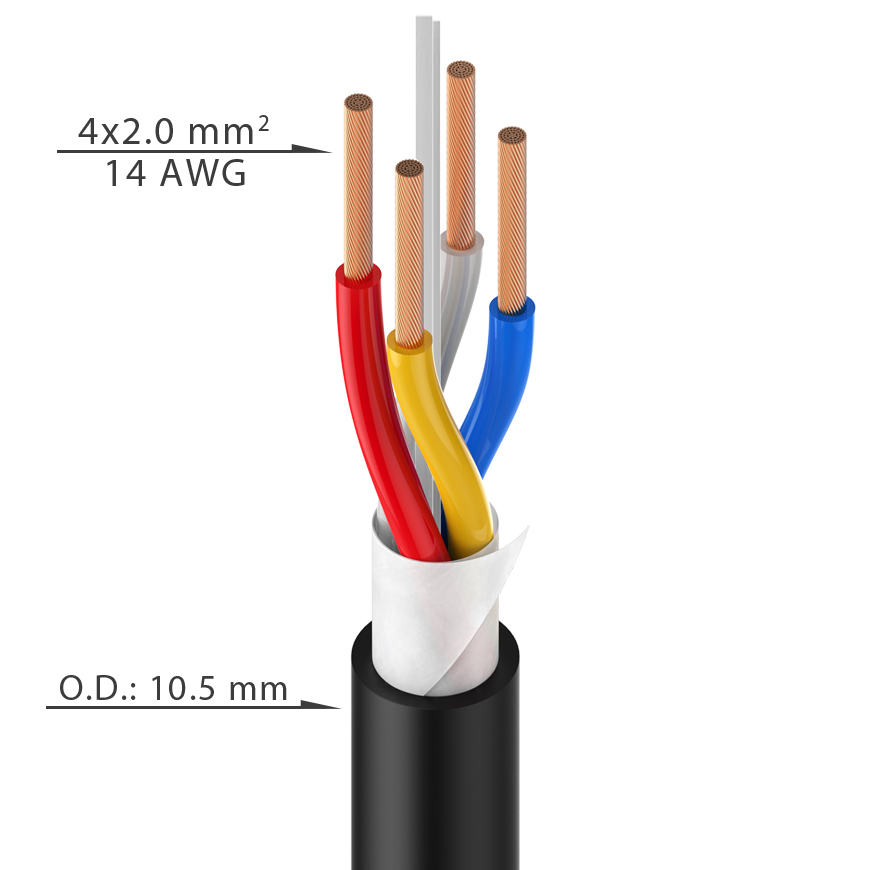

SC040B/C/D

4-Core Speaker Cable

• Soft PVC jacket and cores twisted to a StarQuad grant a perfectwinding
• Loss-free transmission due to the special stranding
• Easy to work with due to good insulation and numbered wiring

Send email to us

Product Detail

Product Tags

Applications

• Professional PA/sound systems
• Surround and woofer systems
• For fixed installation in building technology

Cable Colour

• Black
• Blue

Technical Data

Order Code	SC040B	SC040C	SC040D
Jacket, diameter	PVC 10.5 mm	PVC 11 mm	PVC 13.2 mm
AWG	14	14	12
No. of inner conductors	4 x 2.0 mm²	4 x 2.5 mm²	4 x 4.0 mm²
Copper strand per conductor	64 x 0.20 mm	80 x 0.20 mm	80 x 0.25 mm
Cond. PVC insulation, diameter	2.9 mm	3.1 mm	4.0 mm
Temperature range	min. -20 °C	min. -20 °C	min. -20 °C
Temperature range	max. +70 °C	max. +70 °C	max. +70 °C
Packaging	100/300 m roll	100/300 m roll	100/300 m roll
