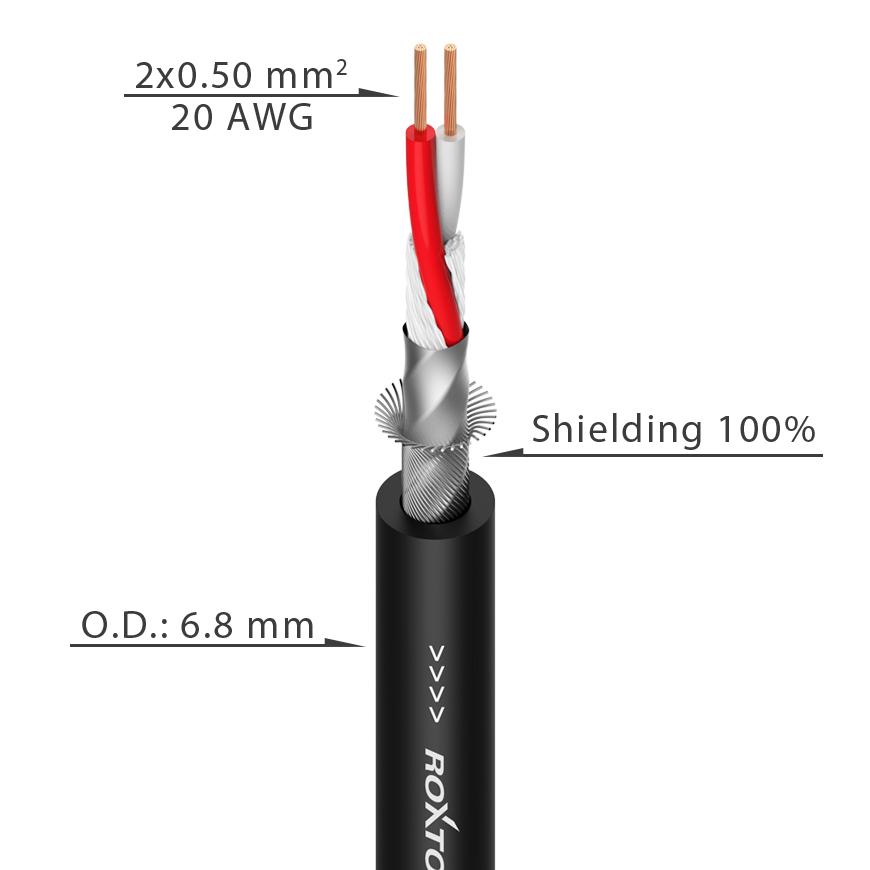

MC022
Balanced microphone cable – 20AWG – 2 x 0.50 mm²
Applications
• Broadcast and building installation
• Professional studio technology
• Tough stage application for long lengths use
Cable Colour
• Black
• Blue
Technical Data
| Jacket, diameter | PVC 6.8 mm |
| AWG | 20 |
| No. of inner conductors | 2 x 0.50 mm² |
| Copper strand per conductor | 28 x 0.15 mm |
| Conductor insulation | PE 1.65 mm |
| Shielding | tin plated copper spiral shielding with 80 x 0.10 mm + AL fleece |
| Shielding factor | 100% |
| Temperature range | min. -20°C |
| Temperature range | max. +70°C |
| Packaging | 100/300 m roll |
Electrical Data
| Capac. cond./cond. per 1 m | 87 pF |
| Capac. cond./shield. per 1 m | 165 pF |
| Cond. resistance per 1 km | 34 Ω |
| Shield. resistance per 1 km | 29 Ω |
| Insulation resist. per 1 km | > 1 GΩ |
