Balanced patch cable for installation – 24AWG – 2 x 0.22 mm² Featured Image
  • Balanced patch cable for installation – 24AWG – 2 x 0.22 mm²

MC036

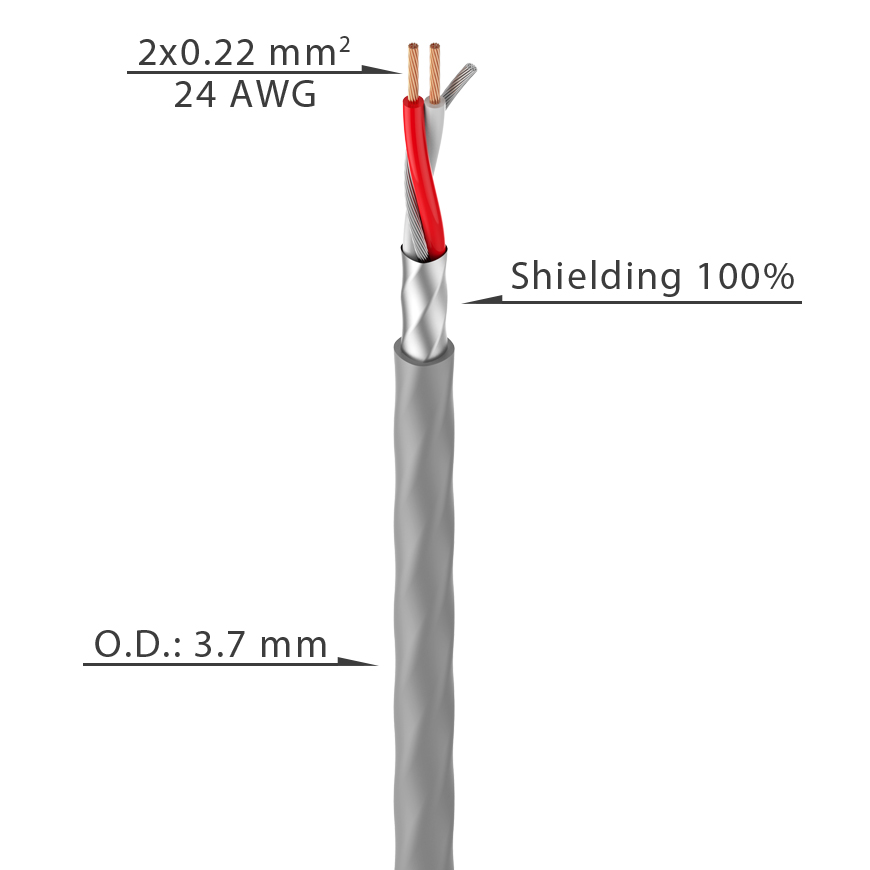

Balanced patch cable for installation – 24AWG – 2 x 0.22 mm²

• Very thin PVC jacket with a diameter of 3.7 mm, suitable for the wiring inside thecabinet, save more space
• Durability due to the special robust PVC jacket
• Use special LLDPE for the insulation, ensure a good electrical performanceand tensile strength
• Wonderful shielding 100% provided by AL fleece and drain wire
• Highly flexible due to a professional stranded wire technology


Product Detail

Product Tags

Applications

• Internal wiring of racks

• audio and HiFi components

Cable Colour

• Grey

• Black

Technical Data

Jacket, diameter PVC 3.7 mm
AWG 24
No. of inner conductors 2 x 0.22 mm²
Copper strand per conductor 20 x 0.12 mm
Conductor insulation LLDPE 1.40 mm
Drain Wire 25 x 0.12mm Tin copper
Shielding AL fleece
Shielding factor 100%
Temperature range min. -20°C
Temperature range max. +70°C
Packaging 100/300 m roll

Electrical Data

Capac. cond./cond. per 1 m 52 pF
Capac. cond./shield. per 1 m 108 pF
Cond. resistance per 1 m 80 mΩ
Shield. resistance per 1 m 52 mΩ
