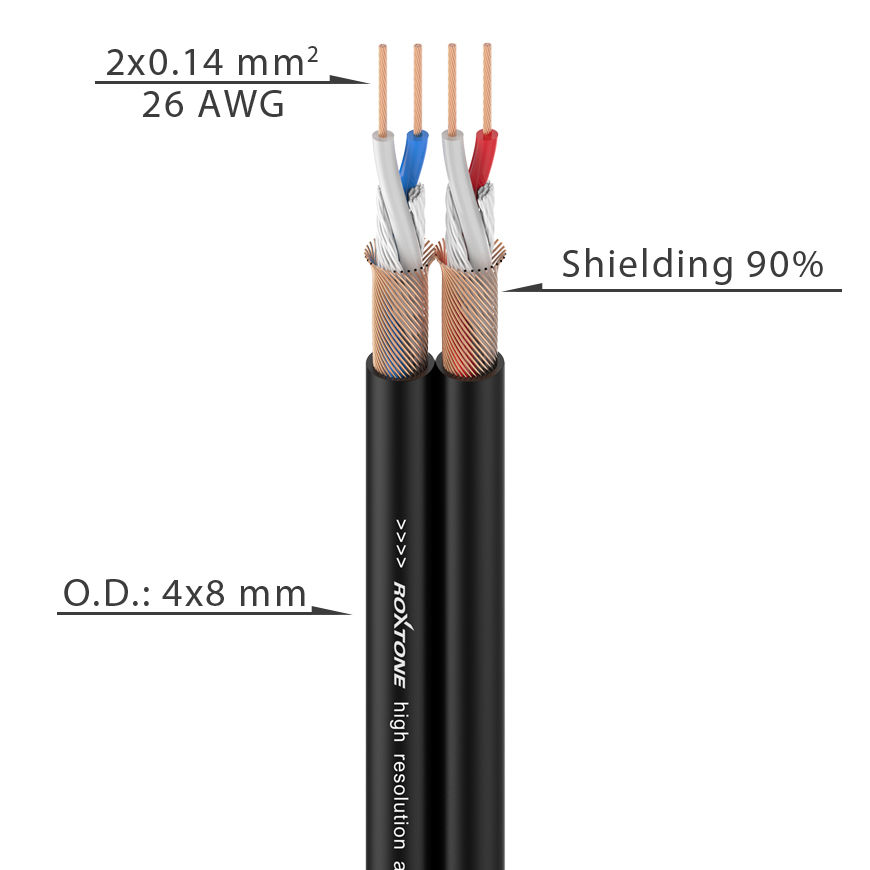

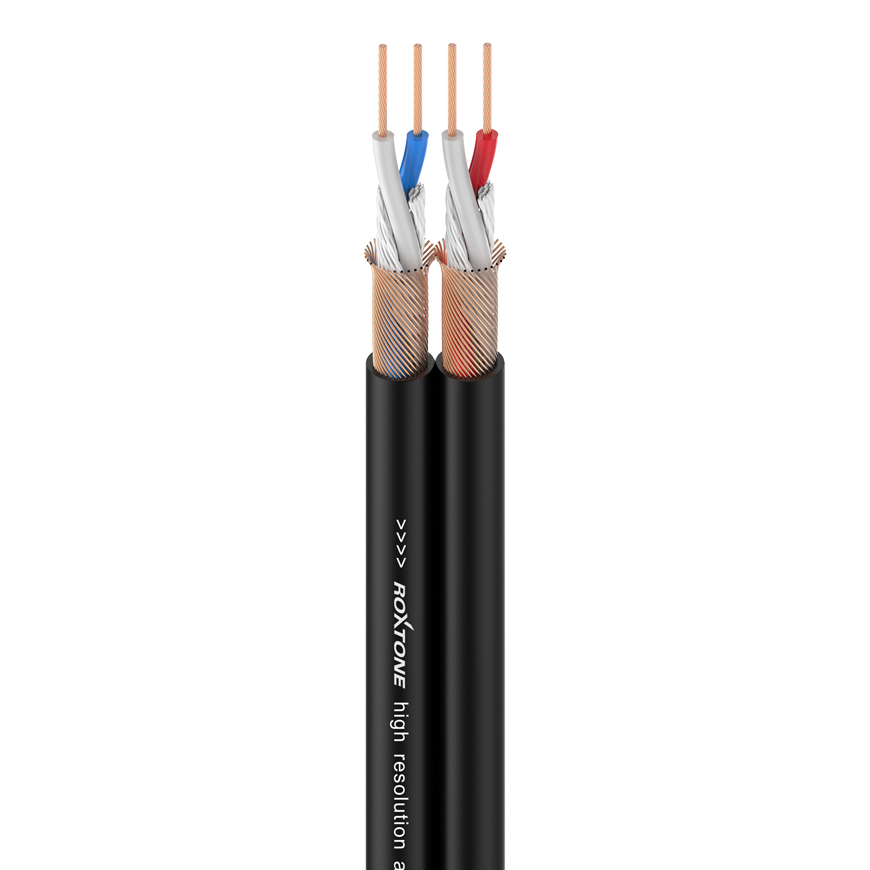

AC020
Flat audio cable – 26AWG – 2 x 2 x 0.14 mm²
Applications
• Cabling for balanced units
• Connection of HiFi-units
• Construction of Y-adapter cables
• Manufacture of insert cables
Cable Colour
• Black
• Blue
Technical Data
| Jacket, diameter | PVC 4 x 8 mm |
| AWG | 26 |
| No. of inner conductors | 2 x 2 x 0.14 mm² |
| Copper strand per conductor | 18 x 0.10 mm |
| Conductor insulation | PE 1.2 mm |
| Shielding | copper spiral shielding |
| Shielding factor | 90 % |
| Temperature range | min.-20 °C |
| Temperature range | max.+70 °C |
| Packaging | 100/300 m roll |
Electrical Data
| Capac. cond./cond. per 1 m | 50 pF |
| Capac. cond./shield. per 1 m | 100 pF |
| Cond. resistance per 1 m | 122 mΩ |
| Shielding resistance per 1 m | 50 mΩ |
