Flexible CAT5e data cable S/UTP – 26AWG – 4 x 2 x 0.15 mm² Featured Image
  • Flexible CAT5e data cable S/UTP – 26AWG – 4 x 2 x 0.15 mm²
  • Flexible CAT5e data cable S/UTP – 26AWG – 4 x 2 x 0.15 mm²

CAT5FB

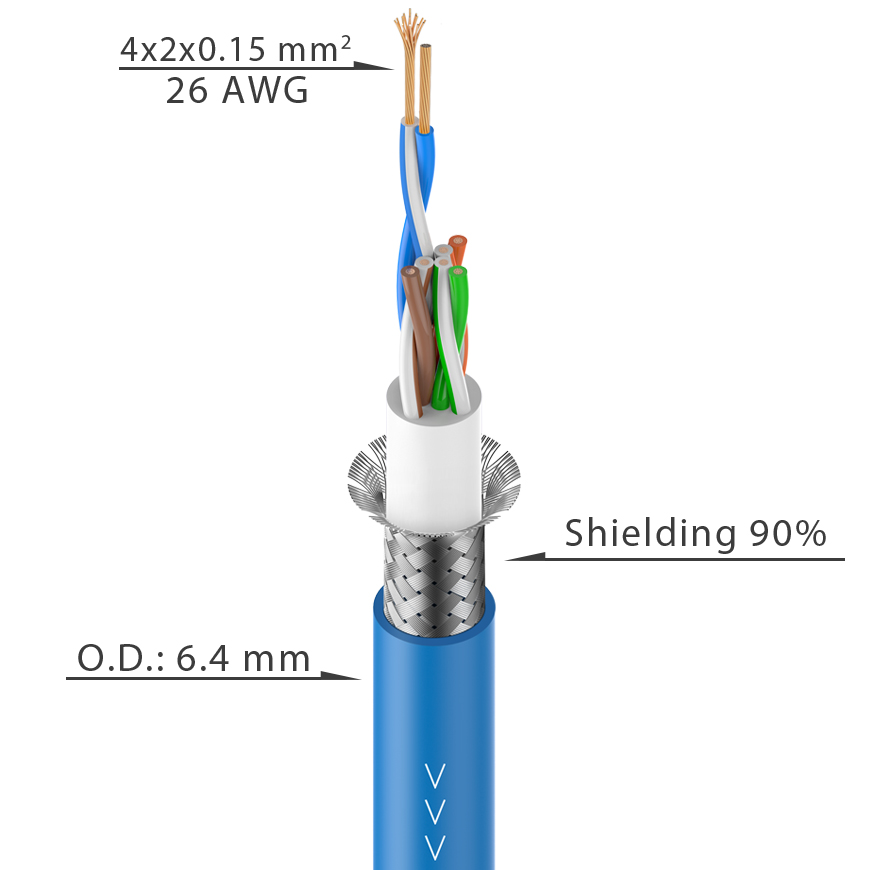

Flexible CAT5e data cable S/UTP – 26AWG – 4 x 2 x 0.15 mm²

• Highly flexible CAT5e data cable down to -40 °C
• S/UTP ( braided shielding + unshielded twisted pairs )
• Very robust TPE jacket
• EtherSound up to 50 m
• Halogen-free and Flame retardant


Product Detail

Product Tags

Applications

• Network cable for mobile applications and drum storage
• Better to use on stage or outdoor events
• Use for data system technology

Cable Colour

• Black
• Blue

Technical Data

Jacket, diameter  TPE 6.4 mm
AWG 26
No. of inner conductors 4 x 2 x 0.15 mm²
Copper strand per conductor 19 x 0.10 mm
Conductor insulation HDPE
Shielding Braided shielding
with 128 x 0.10 mm
Shielding factor 90 %
Temperature range  min. -40 °C
Temperature range  max. +85 °C
Packaging 100/300 m roll

Electrical Data

Capac. cond./cond. per 1 m 45 pF
Capac. cond./shield. per 1 m 70 pF
Cond. resistance per 1 m 122 mΩ
Shield. resistance per 1 m 37 mΩ
