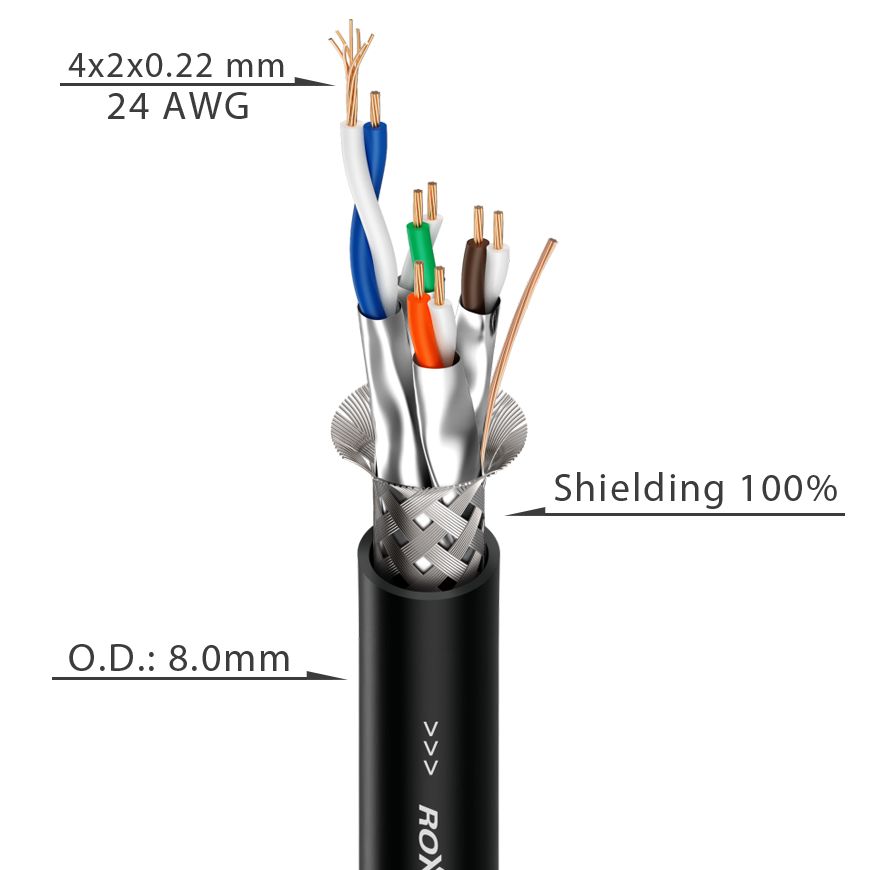

C6AP/C6AE
Flexible CAT6a data cable S/FTP
Applications
• It's excellent data cable for mobile outdoor transmissions of digital audio or network signals
• Use for all CAT5e, CAT6, CAT6a transmissions
Cable Colour
• Black
Technical Data
| Order Code | C6AP | C6AE |
| Jacket, diameter | PVC 8.0 mm | TPE 8.0 mm |
| AWG | 24 | 24 |
| No. of inner conductors | 4 x 2 x 0.22 mm² | 4 x 2 x 0.22 mm² |
| Copper strand per conductor | 7 x 0.20 mm | 7 x 0.20 mm |
| Conductor insulation | Foam-skin PE | Foam-skin PE |
| Shielding |
Braided shielding with 128 x 0.12 mm + AL/PT-foil + drain wire 7 x 0.2 mm |
Braided shielding with 128 x 0.12 mm + AL/PT-foil + drain wire 7 x 0.2 mm |
| Shielding factor | 100% | 100% |
| Temperature range | min. -20 °C | min. -20 °C |
| Temperature range | max. +60 °C | max. +60 °C |
| Packaging | 100/300 m roll | 100/300 m roll |
Electrical Data
| Capac. cond./cond. per 1 m | 38.3 pF | 38.3 pF |
| Capac. cond./shield. per 1 m | 82 pF | 82 pF |
| Cond. resistance per 1 m | 85 mΩ | 85 mΩ |
| Shield. resistance per 1 m | 7.5 mΩ | 7.5 mΩ |
