Features
• Low profile and neat design, space saving
• High damping 100° up or down rotatable bushing design, ensure clean and tidy wiring
• Screwless convenient for personalized DIY assemble and repair
• TPE soft cable exit hole for cable diameter from 3mm to 6mm
• 24K gold-plated contacts, guarantee stable signal transmission
• Patent protect
Available Color Rings
Technical Data | |
Housing | PA6 + 20%GF |
Insert | PBT |
Contacts | Bronze |
Contacts plating | Gold-plated |
Bushing | PA6 + 20%GF, TEP |
Color ring | PA6 + 20%GF |
Rotatable Degree | 200° (up or down 100°) |

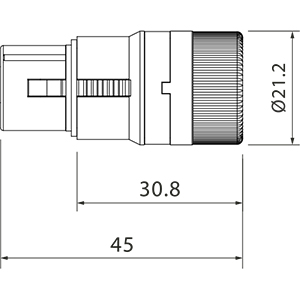

Engineering Drawing
Accessories
Order Code | DCXF-HD |
Description | Silicone dust cover |
