LX3M Low profile rotatable XLR male
Features
• Low profile and neat design, space saving
• High damping 100° up or down rotatable bushing design, ensure clean and tidy wiring
• Screwless convenient for personalized DIY assemble and repair
• TPE soft cable exit hole for cable diameter from 3mm to 6mm
• 24K gold-plated contacts, guarantee stable signal transmission
• Patent protect

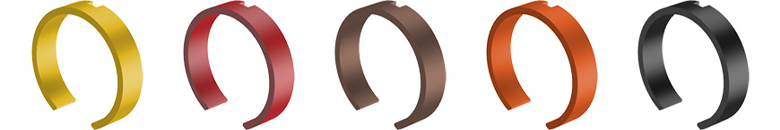

Available Color Rings
| Technical Data | |
| Housing | PA6 + 20%GF |
| Insert | PBT |
| Contacts | Brass |
| Contacts plating | Gold-plated |
| Bushing | PA6 + 20%GF, TEP |
| Color ring | PA6 + 20%GF |
| Rotatable Degree | 200° (up or down 100°) |

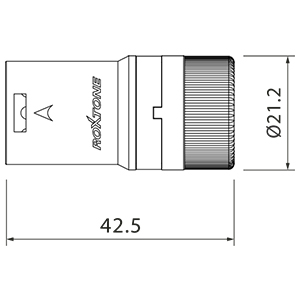

Engineering Drawing
Accessories
| Order Code | DCXF-HD |
| Description | Silicone dust cover |
