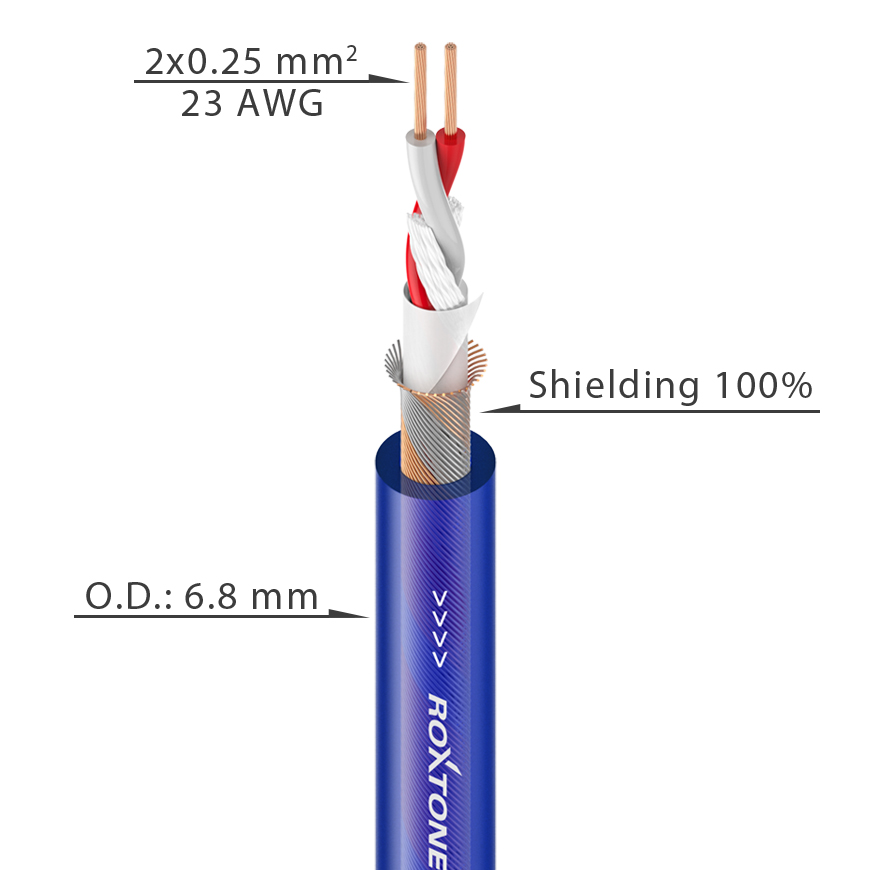

MC080

Matte transparent microphone cable – 23AWG – 2 x 0.25mm²

• Excellent tensile strength due to use of Tinsel wire
• The use of OFC strands and a large conductor cross-section of 2 x 0.25 mm² ensure high-quality signal transmission
• Very low capacitance due to thick PE insulation
• Good shielding provided by dense copper and Tinsel wire spiral shielding
• Highly flexible due to high quality material and professional stranded wire technology

Send email to us

Product Detail

Product Tags

Applications

• Stage
• Mobile
• KTV

Cable Colour

• Transparent Blue
• Transparent Red

Technical Data

Jacket, diameter PVC	6.8 mm
AWG	23
No. of inner conductors	2 x 0.25 mm²
Copper strand per conductor	32 x 0.10 mm Bare copper + 3 x 0.23 mm Tinsel wire
Conductor insulation	LLDPE 1.55 mm
Shielding	32 x 0.12 mm Tin copper + 40 x 0.23 mm Tinsel wire spiral shielding
Shielding factor	100 %
Temperature range	min. -20 °C
Temperature range	max. +70 °C
Packaging	100/300 m roll
