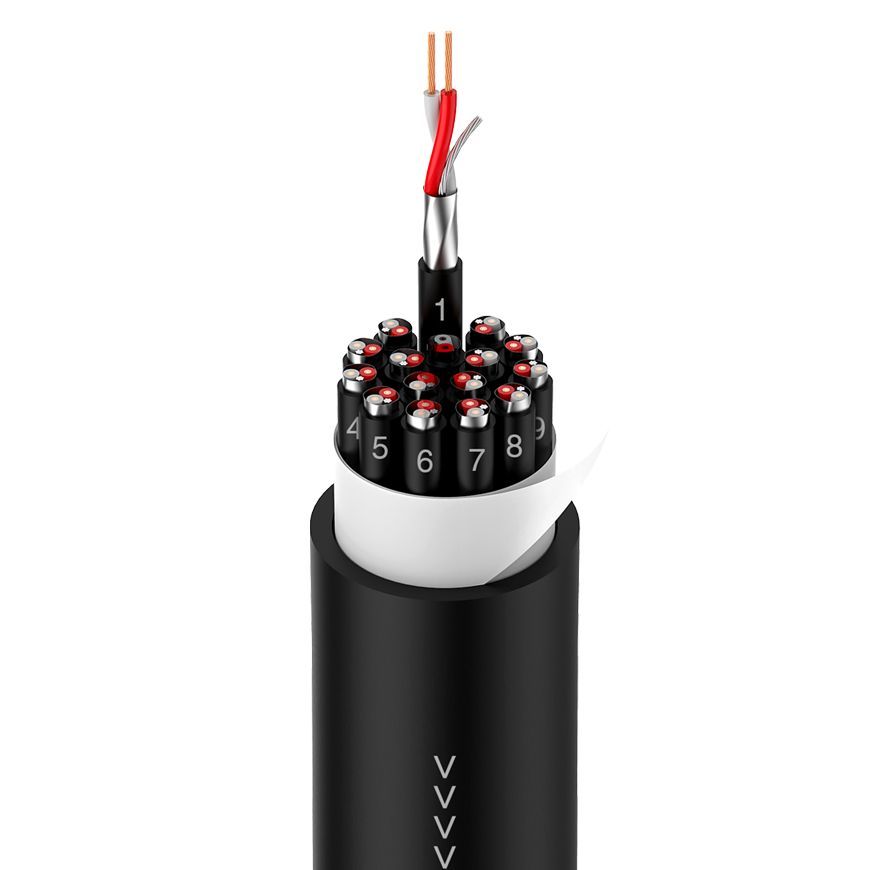

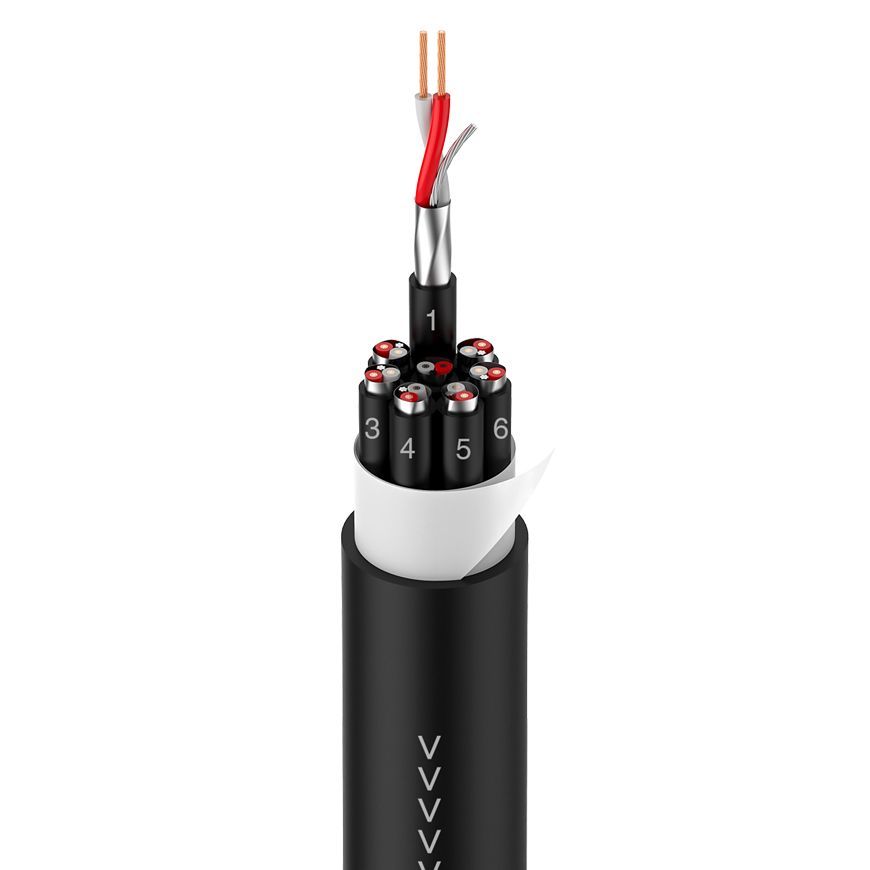

Multicore audio cable – 26AWG – n x 2 x 0.14 mm²

• Each pair is individually insulated with black and number-printed PVC jacket
• Excellent to work with due to the use of a special AL/PT-foil
• Flexible due to the special wire construction
• Good shielding due to the overall and individual wire pair shielding


Product Detail

Product Tags

Applications

• Reasonable cable for the construction of stage box systems and multi-pair systems
• Dependable cable for permanent installation in installation technologies

Cable Colour

• Black

Technical Data

Order Code TCE2 TCE4 TCE8 TCE12
PVC jacket, diameter 8.5 mm 10 mm 14 mm 15 mm
Cond. PVC jacket,diameter 3.0 mm 3.0 mm 3.0 mm 3.0 mm
AWG 26 26 26 26
No. of inner conductors 2 x 2 x 0.14 mm² 4 x 2 x 0.14 mm² 8 x 2 x 0.14 mm² 12 x 2 x 0.14 mm²
Copper strand per conductor 18 x 0.10 mm 18 x 0.10 mm 18 x 0.10 mm 18 x 0.10 mm
Conductor insulation PE 1.05 mm PE 1.05 mm PE 1.05 mm PE 1.05 mm
Shielding AL/PT-foil + drain wire 7 x 0.15 mm  tin plated copper AL/PT-foil + drain wire 7 x 0.15 mm tin plated copper AL/PT-foil + drain wire 7 x 0.15 mm tin plated copper AL/PT-foil + drain wire 7 x 0.15 mm tin plated copper
Shielding factor 100 % 100 % 100 % 100 %
Temperature range min. -20 °C min. -20 °C min. -20 °C min. -20 °C
Temperature range max. 70 °C max. 70 °C max. 70 °C max. 70 °C

Electrical Data

Capac. cond./cond. per 1 m 66 pF 66 pF 66 pF 66 pF
Capac. cond./shield. per 1 m 140 pF 140 pF 140 pF 140 pF
Cond. resistance per 1 m 126.5 mΩ 126.5 mΩ 126.5 mΩ 126.5 mΩ
Shield. resistance per 1 m 105.2 mΩ 105.2 mΩ 105.2 mΩ 105.2 mΩ

Technical Data

Order Code TCE16 TCE20 TCE24 TCE32
PVC jacket, diameter 18 mm 20 mm 22 mm 25 mm
Cond. PVC jacket,diameter 3.0 mm 3.0 mm 3.0 mm 3.0 mm
AWG 26 26 26 26
No. of inner conductors 16 x 2 x 0.14 mm² 20 x 2 x 0.14 mm² 24 x 2 x 0.14 mm² 32 x 2 x 0.14 mm²
Copper strand per conductor 18 x 0.10 mm 18 x 0.10 mm 18 x 0.10 mm 18 x 0.10 mm
Conductor insulation PE 1.05 mm PE 1.05 mm PE 1.05 mm PE 1.05 mm
Shielding AL/PT-foil + drain wire  7 x 0.15 mm  tin plated copper AL/PT-foil + drain wire  7 x 0.15 mm tin plated copper AL/PT-foil + drain wire  7 x 0.15 mm tin plated copper AL/PT-foil + drain wire  7 x 0.15 mm tin plated copper
Shielding factor 100 % 100 % 100 % 100 %
Temperature range min. -20 °C min. -20 °C min. -20 °C min. -20 °C
Temperature range max. 70 °C max. 70 °C max. 70 °C max. 70 °C

Electrical Data

Capac. cond./cond. per 1 m 66 pF 66 pF 66 pF 66 pF
Capac. cond./shield. per 1 m 140 pF 140 pF 140 pF 140 pF
Cond. resistance per 1 m 126.5 mΩ 126.5 mΩ 126.5 mΩ 126.5 mΩ
Shield. resistance per 1 m 105.2 mΩ 105.2 mΩ 105.2 mΩ 105.2 mΩ

Technical Data

Order Code TCE40
PVC jacket, diameter 26.7 mm
Cond. PVC jacket,diameter 3.0 mm
AWG 26
No. of inner conductors 40 x 2 x 0.14 mm²
Copper strand per conductor 18 x 0.10 mm
Conductor insulation PE 1.05 mm
Shielding AL/PT-foil + drain wire  7 x 0.15 mm  tin plated copper
Shielding factor 100 %
Temperature range min. -20 °C
Temperature range max. 70 °C

Electrical Data

Capac. cond./cond. per 1 m 66 pF
Capac. cond./shield. per 1 m 140 pF
Cond. resistance per 1 m 126.5 mΩ
Shield. resistance per 1 m 105.2 mΩ
