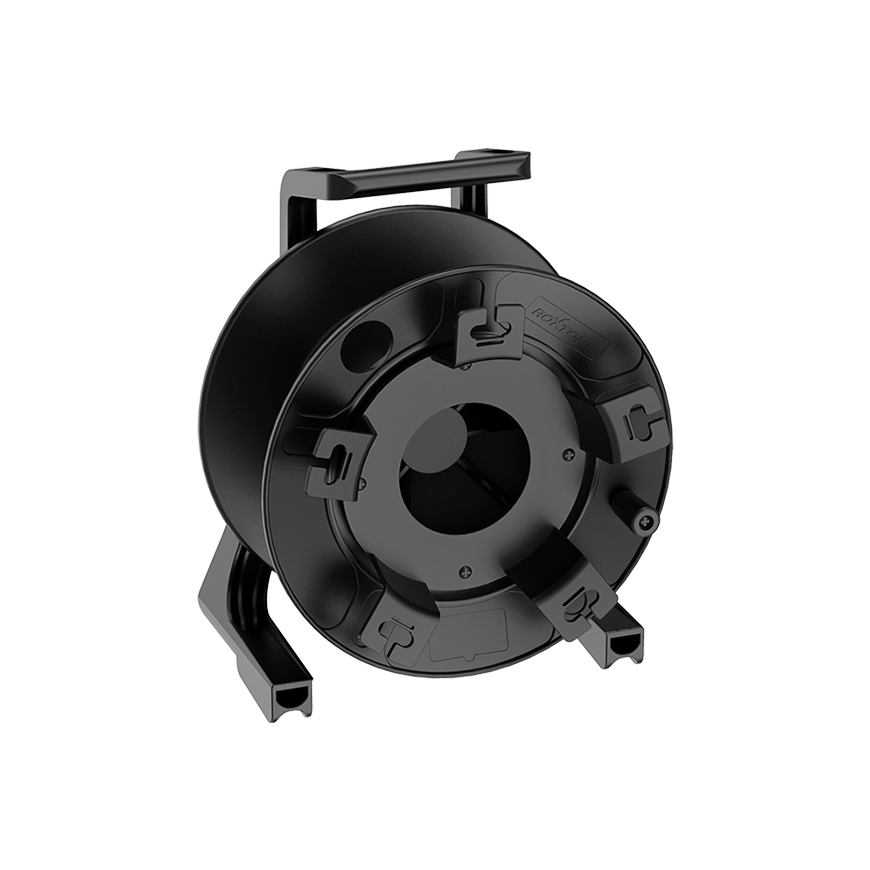

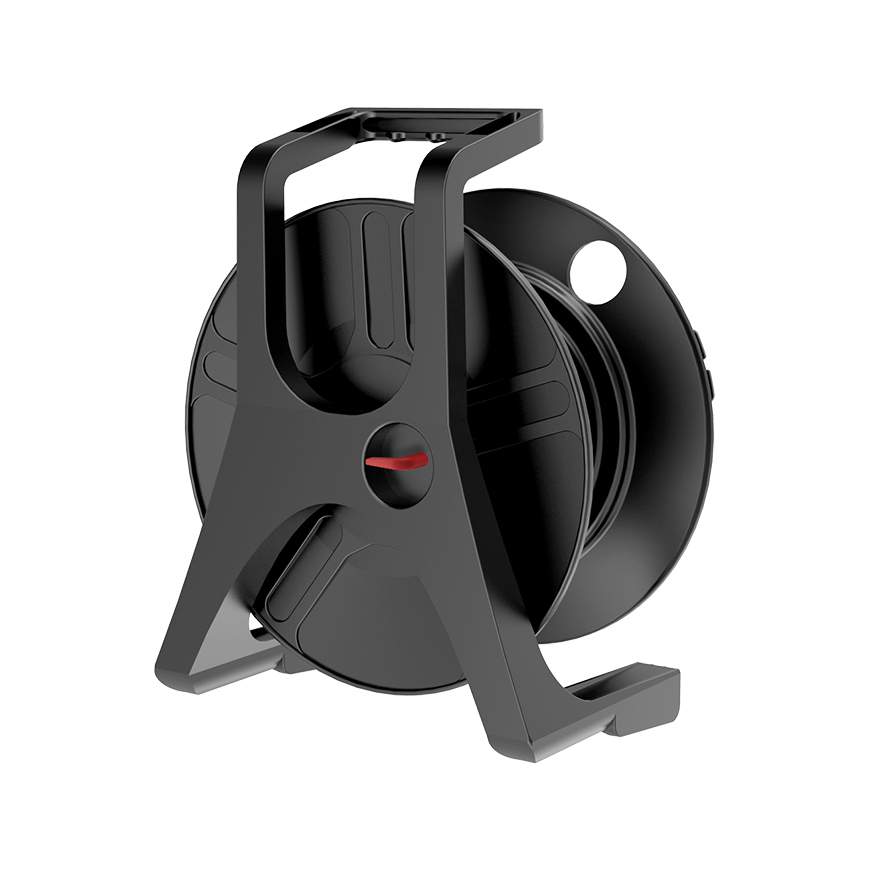

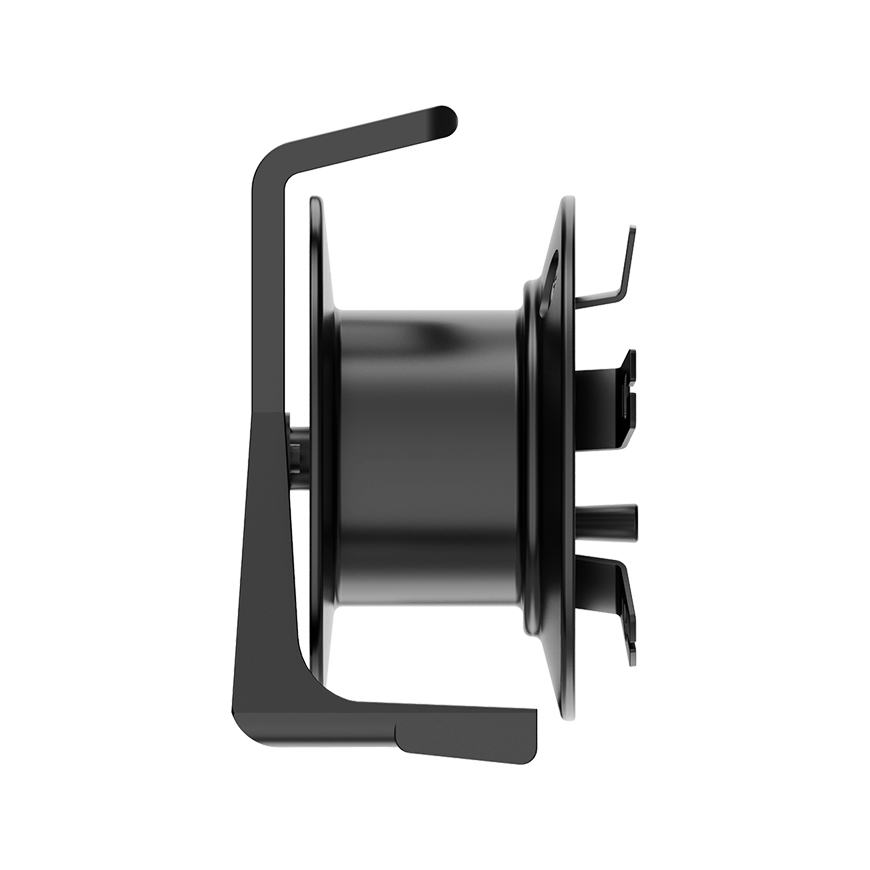

PCD310-Professional unbreakable cable drum with winder – Ø 310 mm

Professional unbreakable cable drum which is designed and developed by ROXTONE itself, suitable for various of long cables. Frame is made from robust PC (Polycarbonate) with integrated handle and brake, drum is made from a special PE composite materials with detachable cable feeder. It has a lot of advantages, such as light weight, crush resistance, resistance to fall off, not easy to deformation, oil resistance, anti-UV and so on.


Product Detail

Product Tags

Features

Professional unbreakable cable drum which is designed and developed by ROXTONE itself, suitable for various of long cables. Frame is made from robust PC (Polycarbonate) with integrated handle and brake, drum is made from a special PE composite materials with detachable cable feeder. It has a lot of advantages, such as light weight, crush resistance, resistance to fall off, not easy to deformation, oil resistance, anti-UV and so on.

Capacity depends on different outer diameter of cables

Diameter Length
∅3.0mm 628m
∅5.0mm 226m
∅6.0mm 157m
∅6.5mm 134m
∅7.0mm 115m
∅8.0mm 88m
∅9.0mm 70m
∅10.0mm 57m
∅11.0mm 47m
∅14.0mm 29m

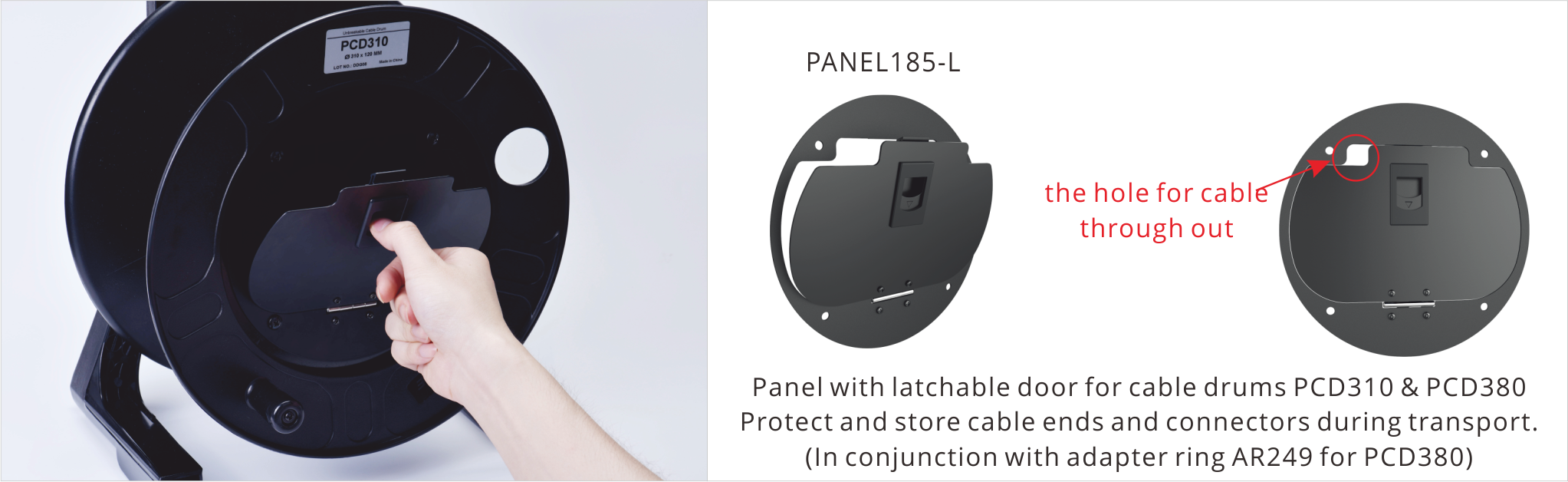

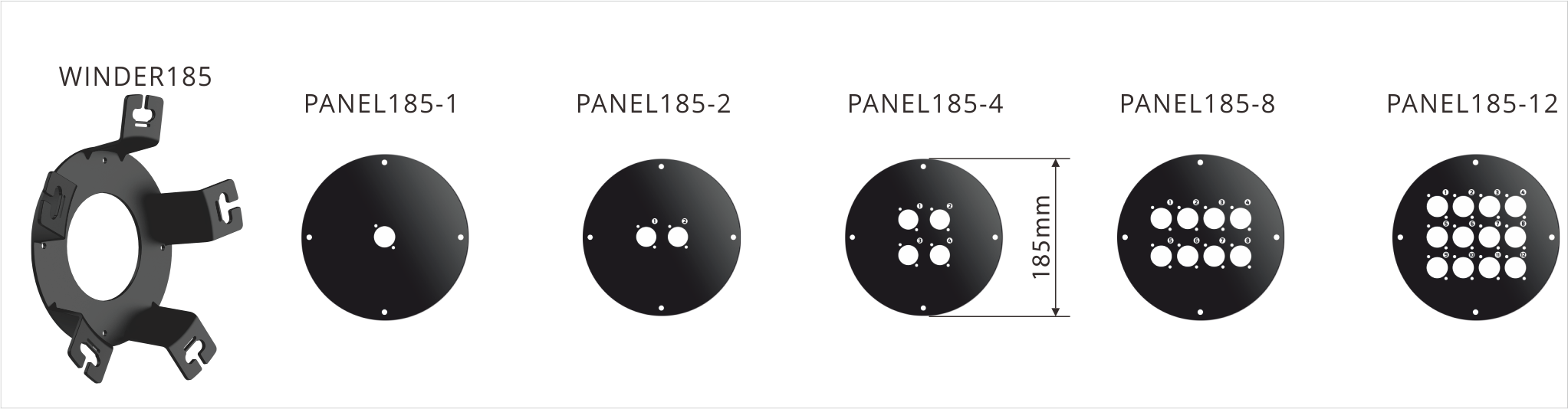

Accessories

20230814170102_1755

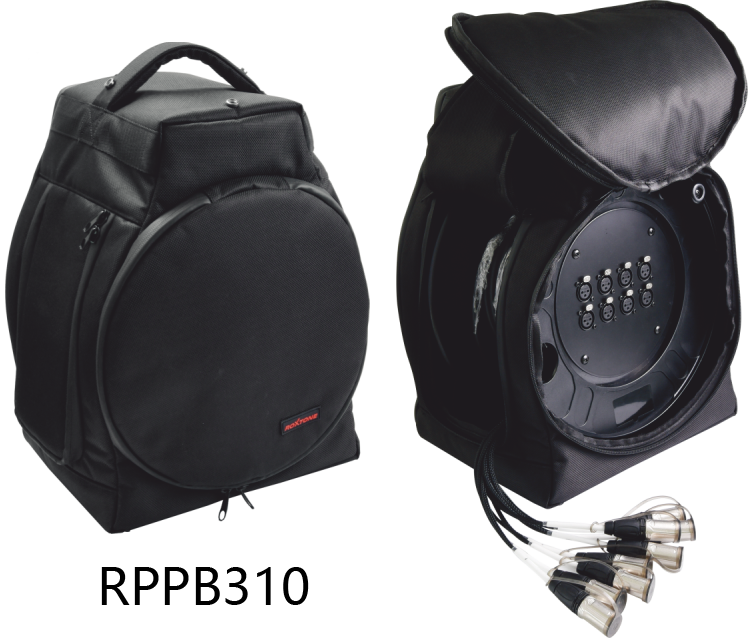

Protective Bag for PCD310 Cable Drum

20230814170614_9094

Engineering Drawing

20180914140515_8945
20180914140546_4201
20230814170132_8784
