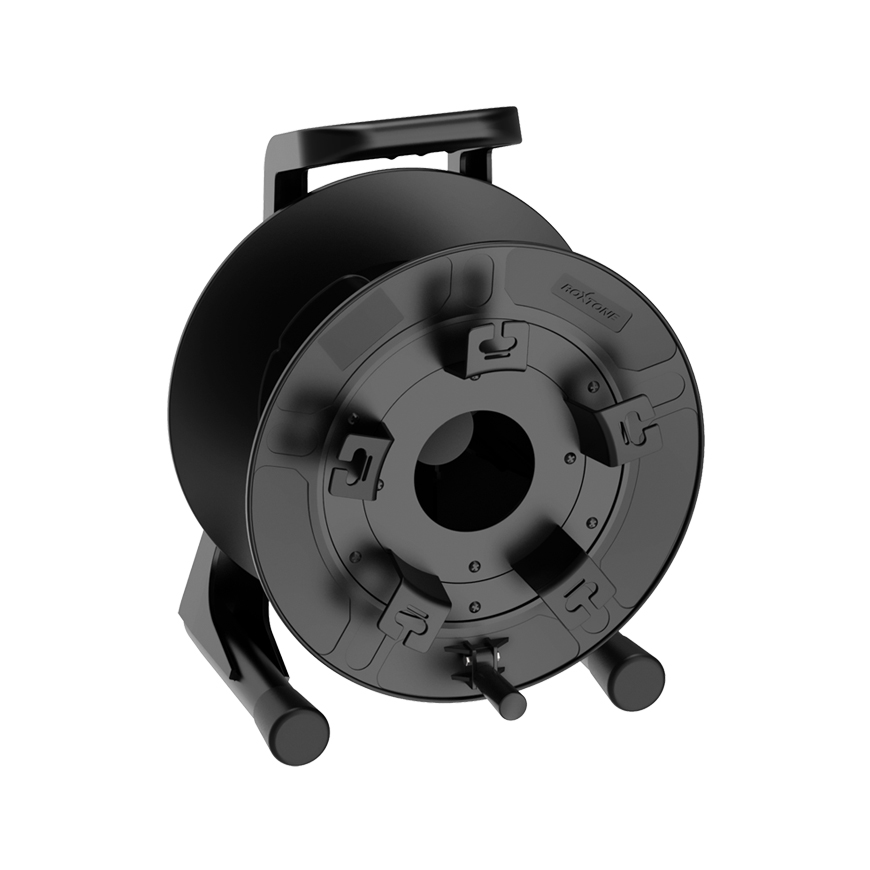

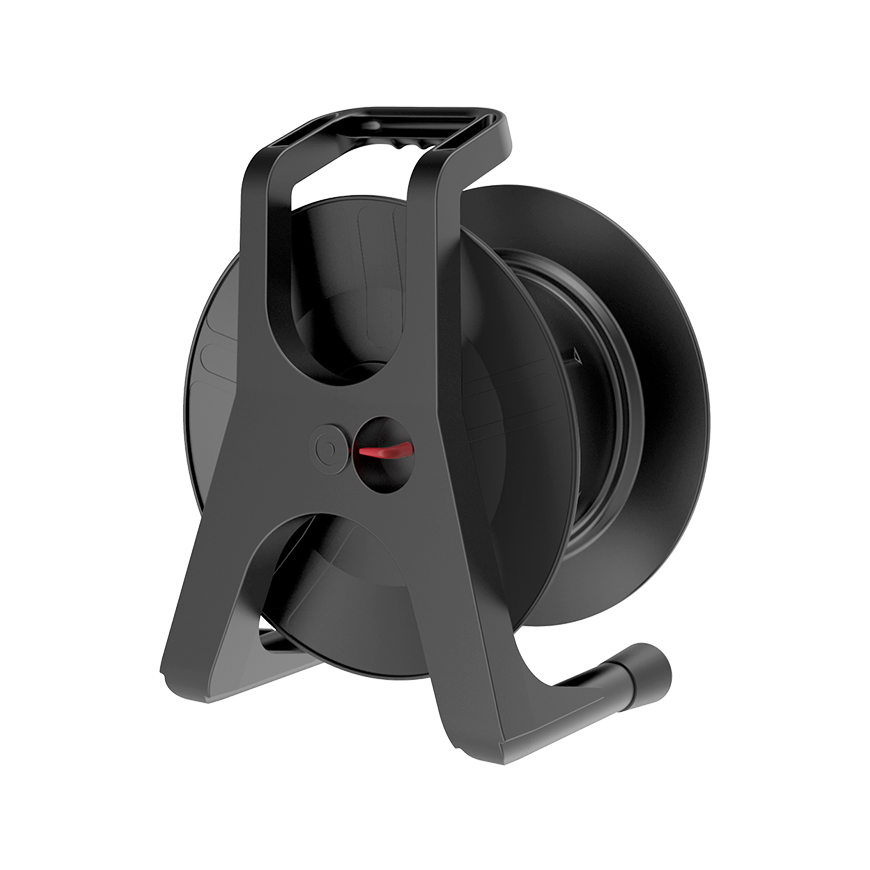

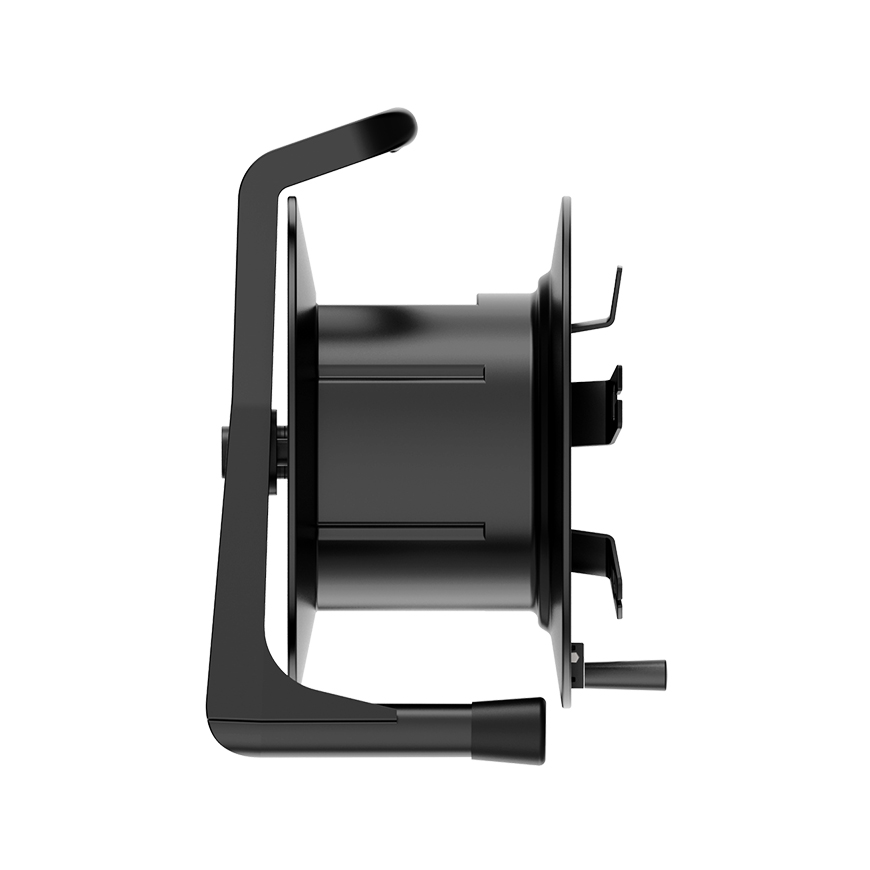

PCD380-Professional unbreakable cable drum with winder – Ø 380 mm

Professional unbreakable cable drum which is designed and developed by ROXTONE itself, suitable for various of long cables. Frame is made from robust PC (Polycarbonate) with integrated handle and brake, drum is made from a special PE composite materials with detachable cable feeder. It has a lot of advantages, such as light weight, crush resistance, resistance to fall off, not easy to deformation, oil resistance, anti-UV and so on.


Product Detail

Product Tags

Features

Professional unbreakable cable drum which is designed and developed by ROXTONE itself, suitable for various of long cables. Frame is made from robust PC (Polycarbonate) with integrated handle and brake, drum is made from a special PE composite materials with detachable cable feeder. It has a lot of advantages, such as light weight, crush resistance, resistance to fall off, not easy to deformation, oil resistance, anti-UV and so on.

Capacity depends on different outer diameter of cables

Diameter Length
∅6.0mm 304m
∅7.0mm 223m
∅8.0mm 171m
∅9.0mm 135m
∅10.0mm 109m
∅11.0mm 90m
∅14.0mm 56m
∅15.0mm 49m
∅16.5mm 40m
∅18.0mm 34m

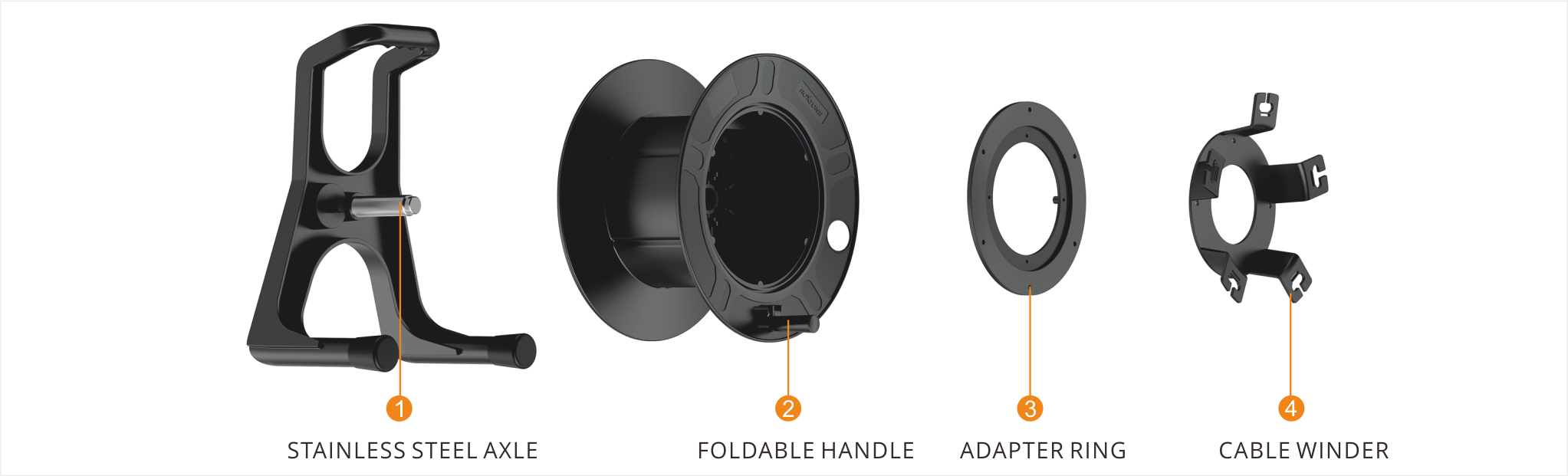

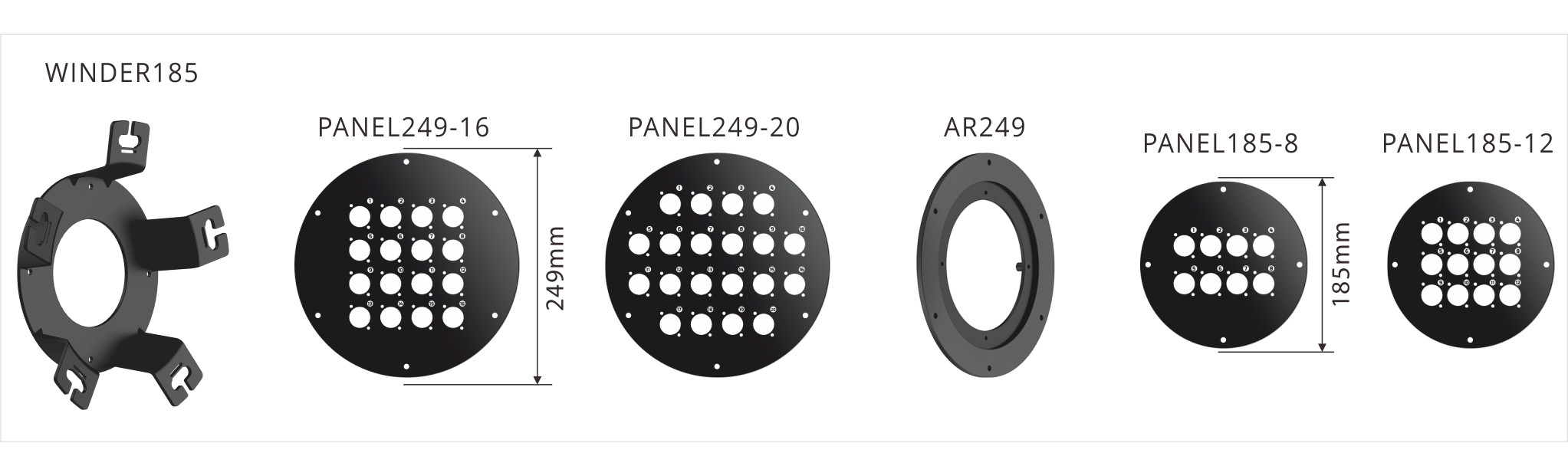

Accessories

20230814172417_7531

Engineering Drawing

20180926104628_9781
20180926104708_8772
20230814172434_6593
