PJ2X-PURE-PUREPLUG, 6.3mm mono plug

6.3mm mono plug

Qtys:400

Unit: piece(s)

Product Detail

Product Tags

Features

• Avoid pops and squeals automatically when changing the instruments under load
• Patents protected with PURE CORE Technology
• Pure bronze and mechanical structure switch system guarantee the longer lifetime using beyond 150,000 mating cycles
• Pure brass contact and more thick tube 0.5mm s sleeve upply the more pure sound
• Reliable chuck type cable strain-relief clamp fix the cable more tight and up to 7.5mm cable
• Classic and simple design with patents protecting
• Three colors suitable for different style cables

20200215193431_0732
20200215164342_0763
Patents#
Invention 201810207321.7
Utility model 201820344006.4
Appearance 201830506386.2
Appearance 201830506384.3
Technical Data
Housing Zinc alloy diecast
Insulation PA66 30% GR
Contacts Brass
Contacts plating Gold
Bushing PA 30% GR & TPE
Order Code Description

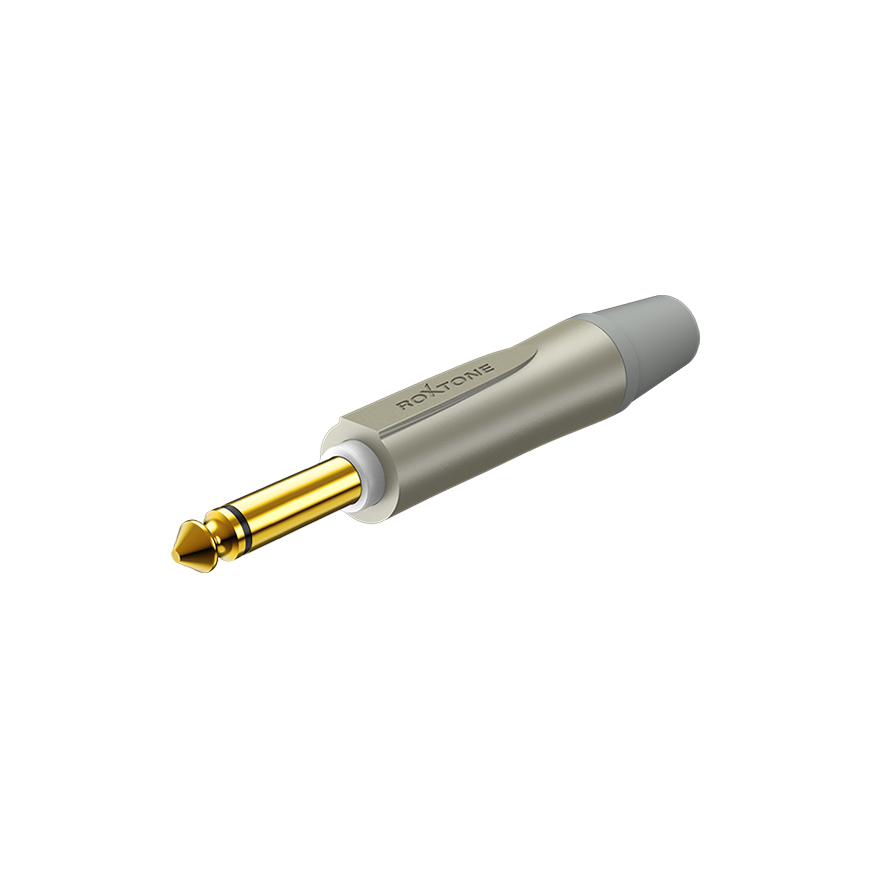

PJ2X-SG-PURE 6.3mm mono plug, Satin nickel housing, Gold plated contacts

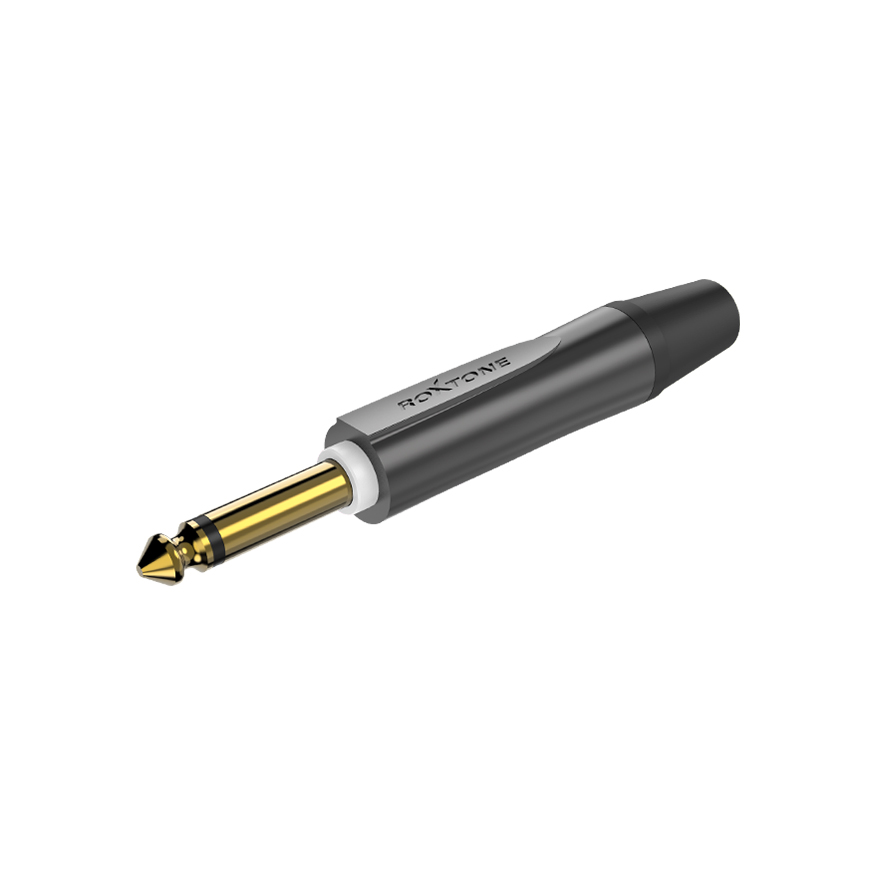

PJ2X-GG-PURE 6.3mm mono plug, Rifle color housing, Gold plated contacts

Engineering Drawing

20200215182904_2776
