RX3FWP 3 pole Heavy-Duty Waterproof XLR female – IP66

• IP66 Waterproof heavy-duty XLR connectors
• Can independently play the function of lP66 waterproof & dustproof
• Full metal solid structure housing for long life using & ensure excellent shielding effecto


Product Detail

Product Tags

Features

• IP66 Waterproof heavy-duty XLR connectors
• Can independently play the function of lP66 waterproof & dustproof
• Full metal solid structure housing for long life using & ensure excellent shielding effecto
• Unique creative waterproof system supply the reliable and durable waterproof effect
• Ergonomic oversize push button for comfortable plug & unplug

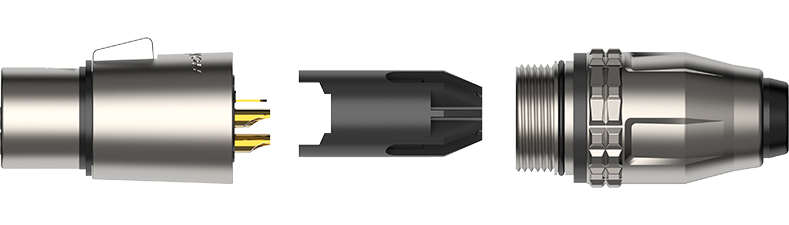

• Unique three-part design makes welding and assembling easier and faster
• Unique gear design makes assembling and disassembling easier
• Passed the testing of beyond 5000 mating cycles, due to made from high-qualityraw materials
• Passed SGS IP66 testing
• Invention patent protecting

20230711131951_8241
20230711131935_0429

Available Color Rings

20221018145501_3618
Technical Data
Housing Zinc alloy diecast
Insert PBT
Contacts Bronze
Contacts plating Gold
Strain-relief clamp POM
Bushing Zinc alloy diecast
Coding ring PA
Order Code Description

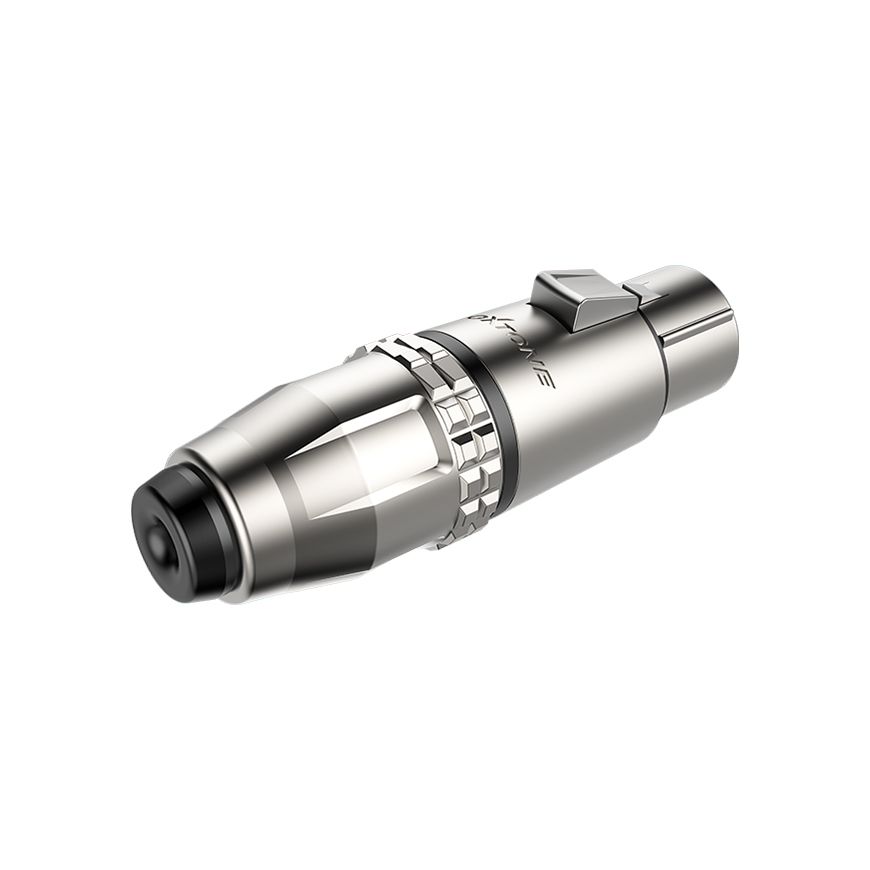

RX3FWP-NG 3 pole XLR female, Nickel plated housing, Gold plated contacts

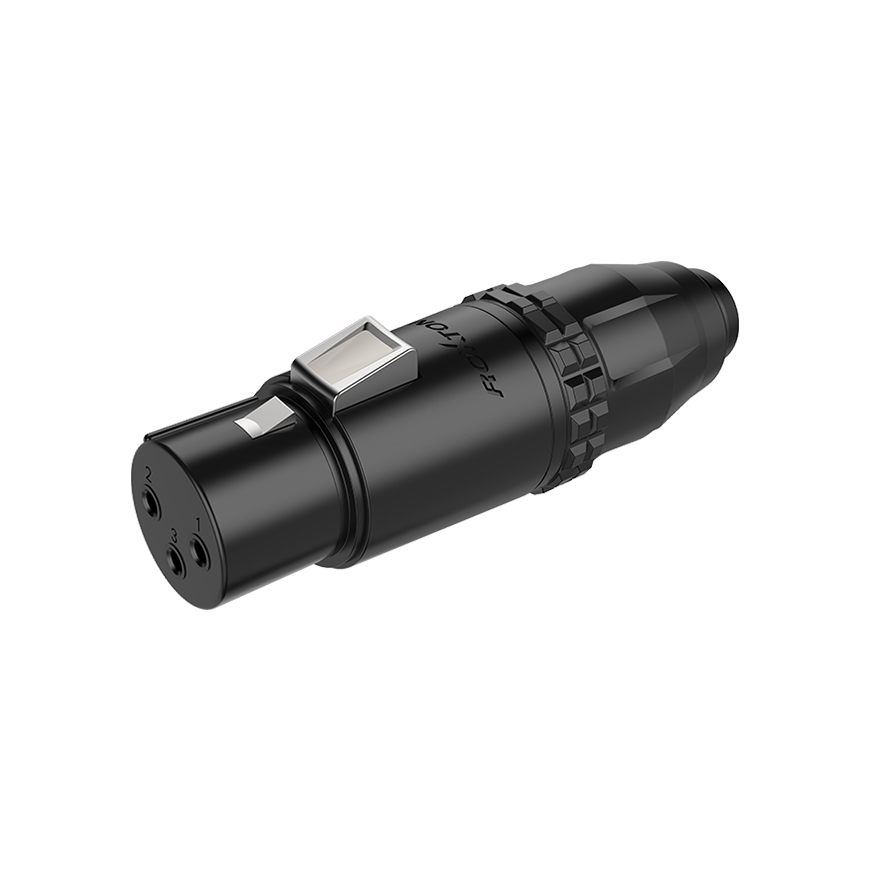

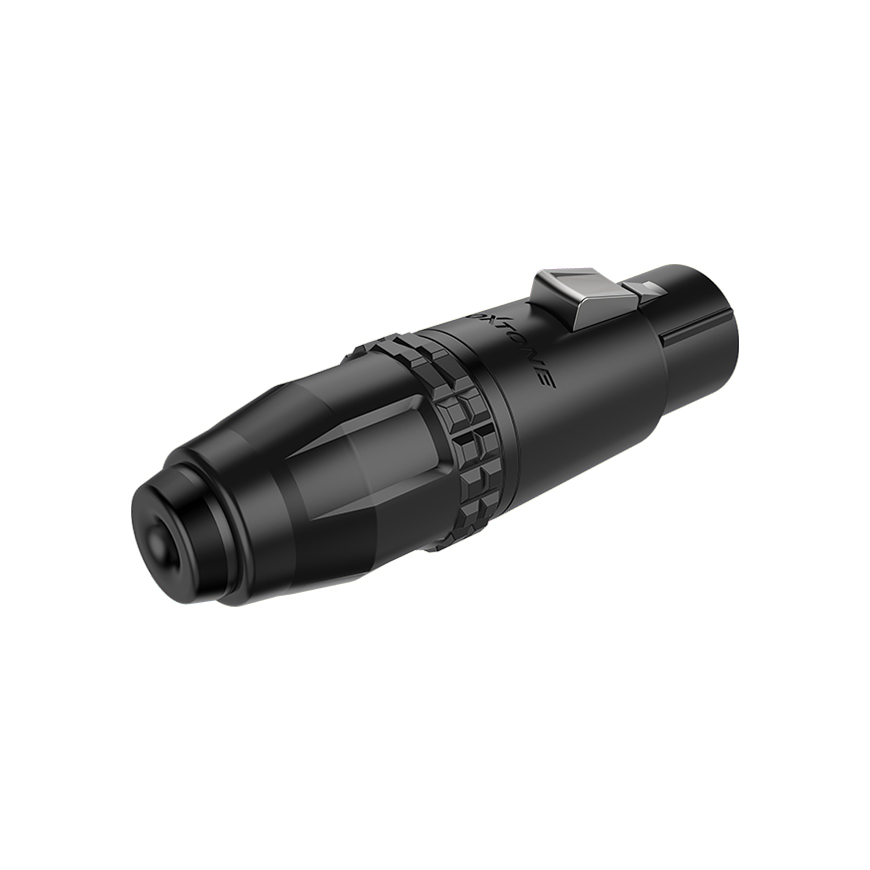

RX3FWP-BG 3 pole XLR female, Black housing, Gold plated contacts
20230711114001_2313

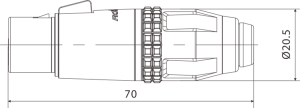

Engineering Drawing

20221018145904_7664
