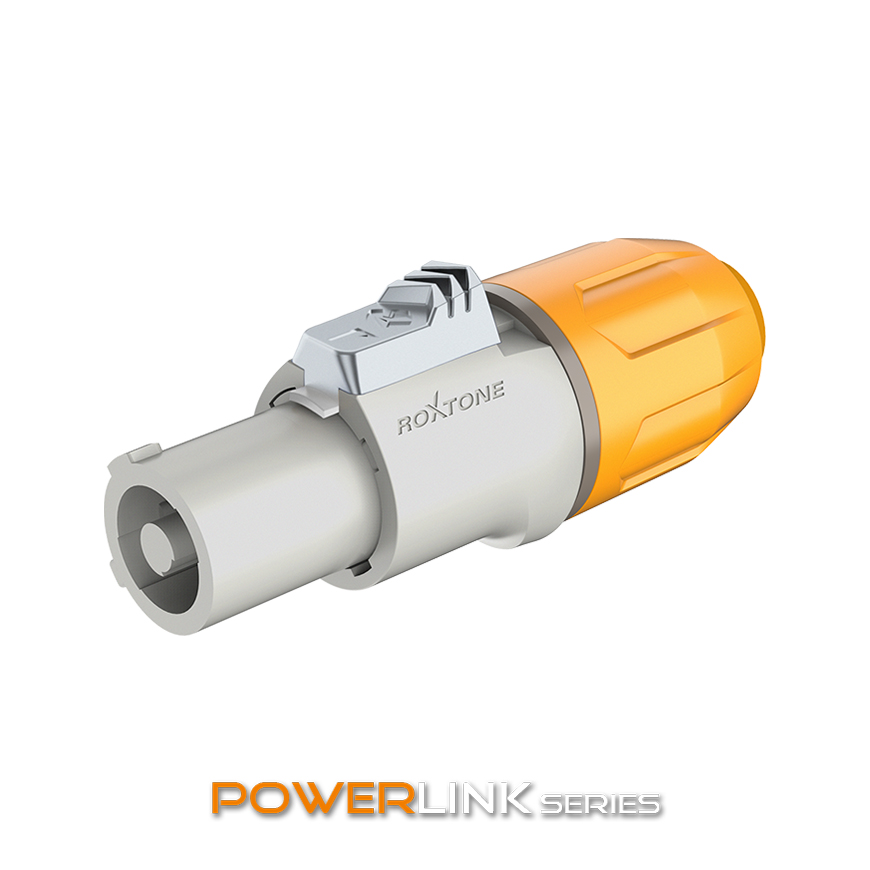

RAC3FCO-WP-Power Link series waterproof power out connector
Features
• Lockable 3 pole equipment(AC) connectors
• Dust and water resistant according to IP65 in mated condition
• Silver plated brass contacts supply excellent contact and conduction properties
• Replaceable color ring on connector indicates cable of different equipment or length easy for works
• Raw material according with UL-V0 for safe use
• 2 pieces silicon sealing ring be provided for different cable diameter
• Dust resistant cover of socket protected non-use equipment(must be purchased separately)
• Patent protected

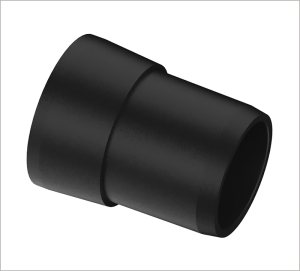

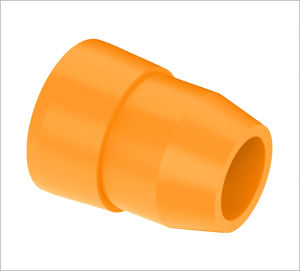

Sealing ring
Included 2pcs sealing rings
• Used for cable diameter 7.0 mm~9.0 mm
• Used for cable diameter 9.0 mm~12.0 mm
Available Color Rings
| Technical Data | |
| Housing | PA6 30% GR |
| Insert | PA66 20% GR |
| Latch | Zinc Alloy diecast |
| Unitary contacts | Brass |
| Contacts plating | Silver |
| Strain-relief Clamp | PA6 30% GR |
| Sealing ring | Silicone |
| Color ring | PA6 30% GR |
| Number of contacts | 3 |
| Rated current per contact | 20 A rms |
| Rate voltage | 250 V ac |
| Cable O.D. range | 6-12 mm |
| Fammability | UL V-0 |
Engineering Drawing

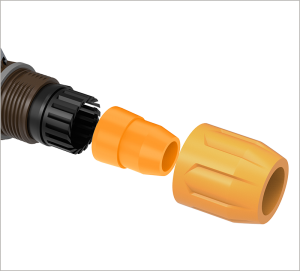

Application & Assembly Instruction
