RAC3MPI-Power Link series power in socket
Features
• Lockable 3 pole equipment(AC) connectors
• Silver plated brass and brzone contacts supply excellent contact and conduction properties
• Replaceable color ring on connector indicates cable of different equipment or length easy for works
• Dust resistant bushing for longlife use
• Raw material according with UL-V0 for safe use
• 2 pieces strain-relief be provided for different cable diameter
• Patent protected
| Technical Data | |
| Housing | PA6 30% GR |
| Contacts | Bronze |
| Contacts plating | Silver |
| Number of contacts | 3 |
| Rated current per contact | 20 A rms |
| Rate voltage | 250 V ac |
| Fammability | UL V-0 |

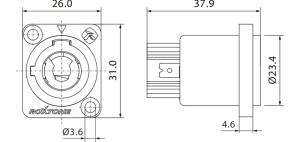

Engineering Drawing
Application & Assembly Instruction
