RAC3MPI-WP-Power Link series waterproof power in socket
Features
• Lockable 3 pole equipment(AC) connectors
• Dust and water resistant according to IP65 in mated condition
• Silver plated brass contacts supply excellent contact and conduction properties
• Replaceable color ring on connector indicates cable of different equipment or length easy for works
• Raw material according with UL-V0 for safe use
• 2 pieces silicon sealing ring be provided for different cable diameter
• Dust resistant cover of socket protected non-use equipment
• Patent protected
| Technical Data | |
| Housing | PA6 30% GR |
| Contacts | Bronze |
| Contacts plating | Silver |
| Dust cover | Silicone |
| Sealing ring | Silicone |
| Number of contacts | 3 |
| Rated current per contact | 20 A rms |
| Rate voltage | 250 V ac |
| Protection class(mated) | IP65 |
| Fammability | UL V-0 |
Engineering Drawing
| Technical Data | |
| Housing | PA6 30% GR |
| Contacts | Bronze |
| Contacts plating | Silver |
| Dust cover | Silicone |
| Sealing ring | Silicone |
| Number of contacts | 3 |
| Rated current per contact | 20 A rms |
| Rate voltage | 250 V ac |
| Protection class(mated) | IP65 |
| Fammability | UL V-0 |
Engineering Drawing

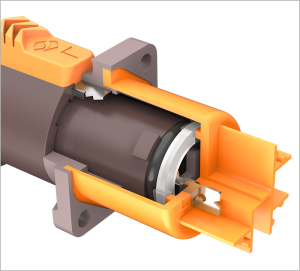

Application & Assembly Instruction
