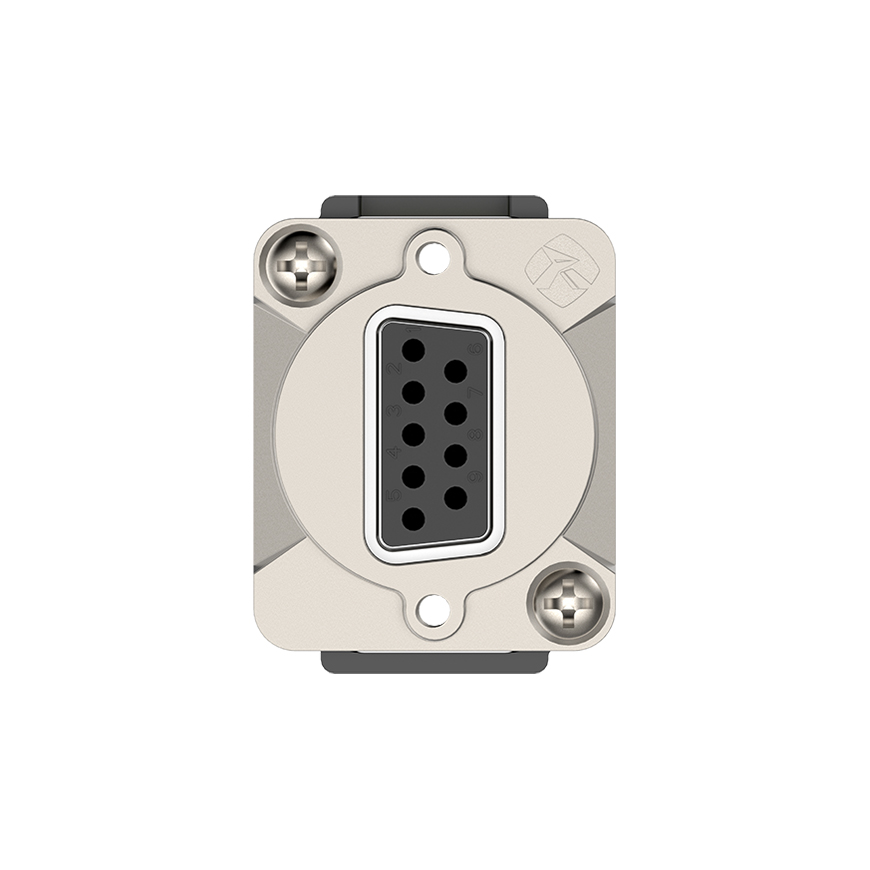

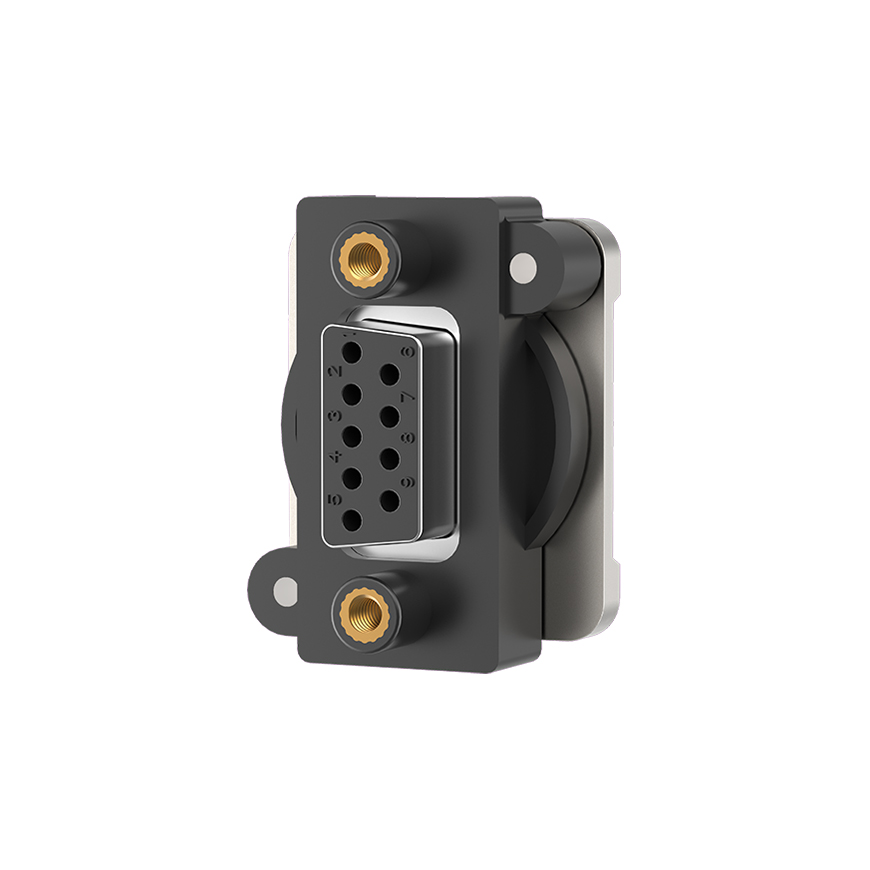

RAD9FD-D-SUB 9P Female Feed Through Socket

D-SUB 9P Female Feed Through Socket

Qtys：300

Unit: piece(s)

Product Detail

Features

• D-size feed through chassis D-SUB adapter
• Grounded version
• ROXTONE brand engraved on the housing
• Patent Protected

Technical Data
Housing	Zinc alloy diecast
Insert	Steel, PA6
Contacts	Brass
Contacts plating	Gold
Order Code	Description
RAD9FD	Feed through chassis D-SUB(9P) adapter, Nickel plated housing

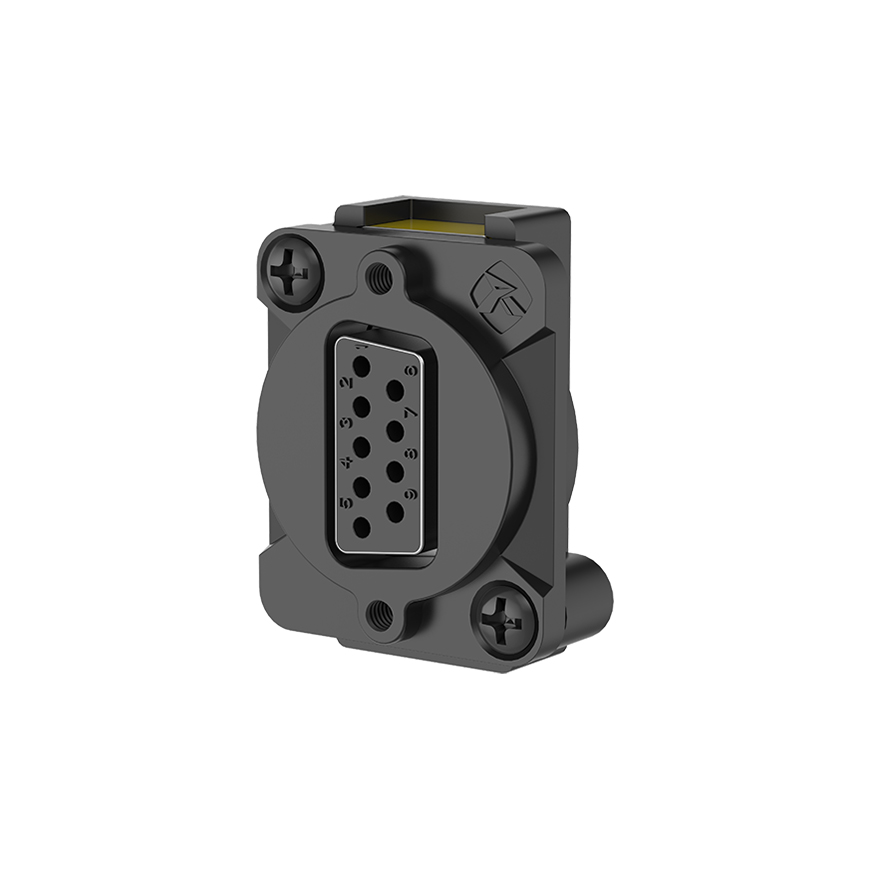

RAD9FD-B	Feed through chassis D-SUB(9P) adapter, Black housing

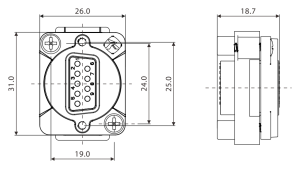

Engineering Drawing
