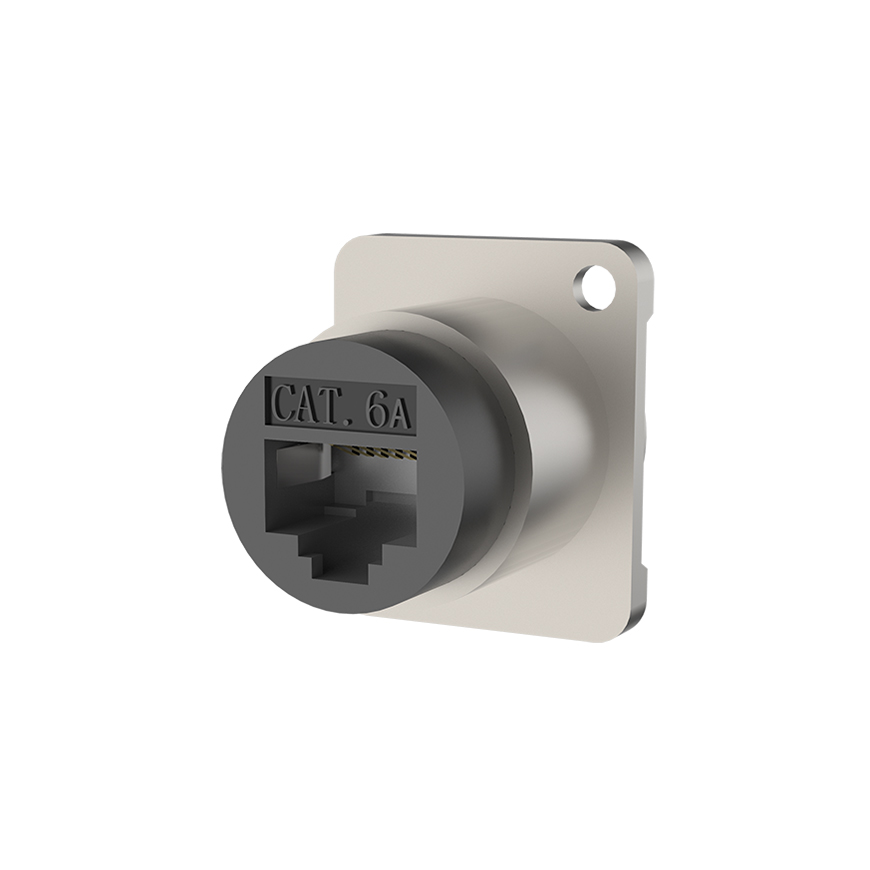

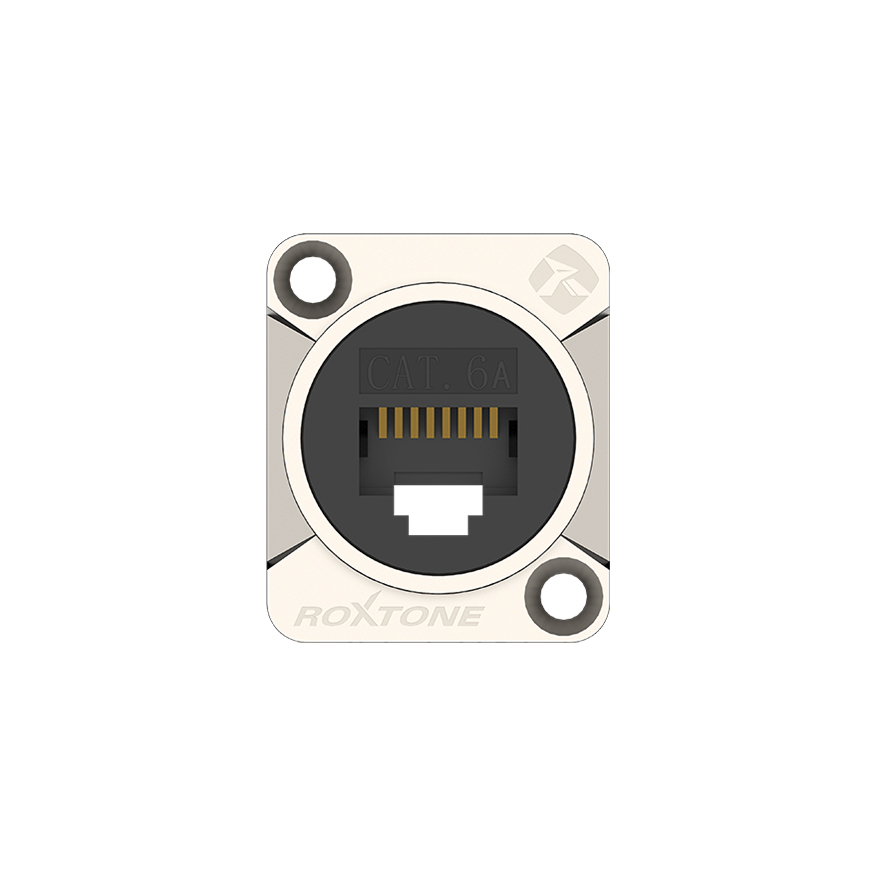

RAE8FD-C6A-S-CAT6a Feed Through,Grounded Version
Features
• D-size feed through pedestal
• ROXTONE brand engraved on the housing
• Patent Protected
| Technical Data | |
| Housing | Zinc alloy diecast |
| Insert | PA6 30% GR |
| Power Supply | 5V / 1.5A |
| Insulation Resistance | >500MΩ |
| Dielectric Strength | 1KV dc |
| Contact-Plating | Gold 30μ |
| Order Code | Description |

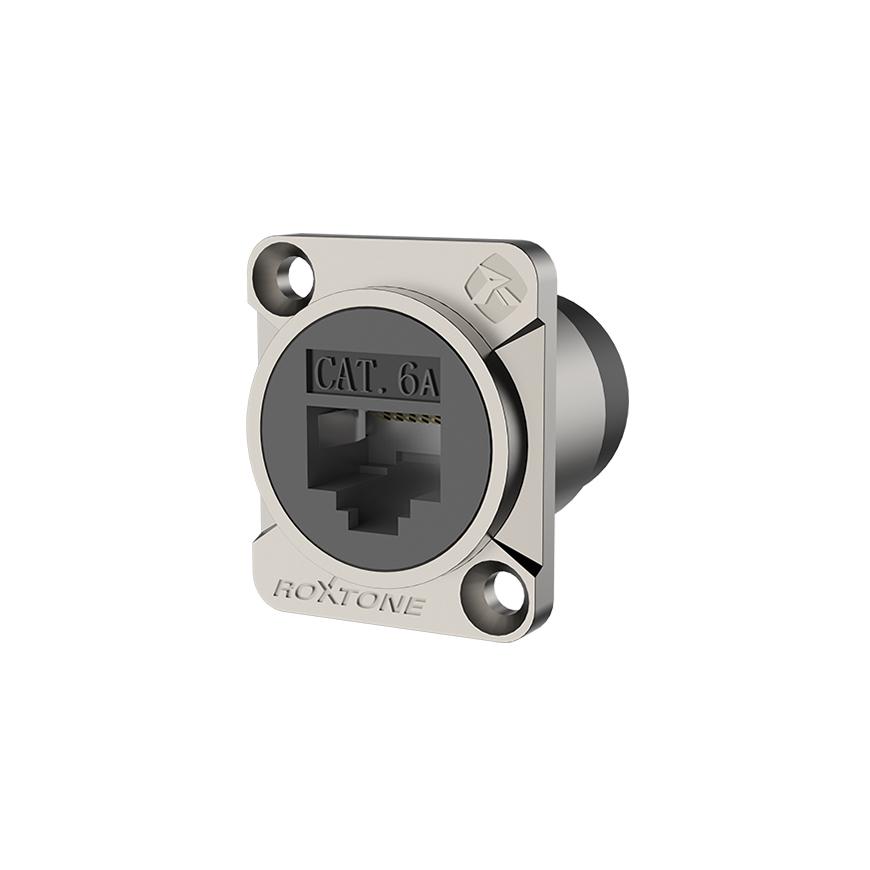

| RAE8FD-C6A-S | Feed through chassis RJ45 (CAT6A) adapter, Nickel plated housing |

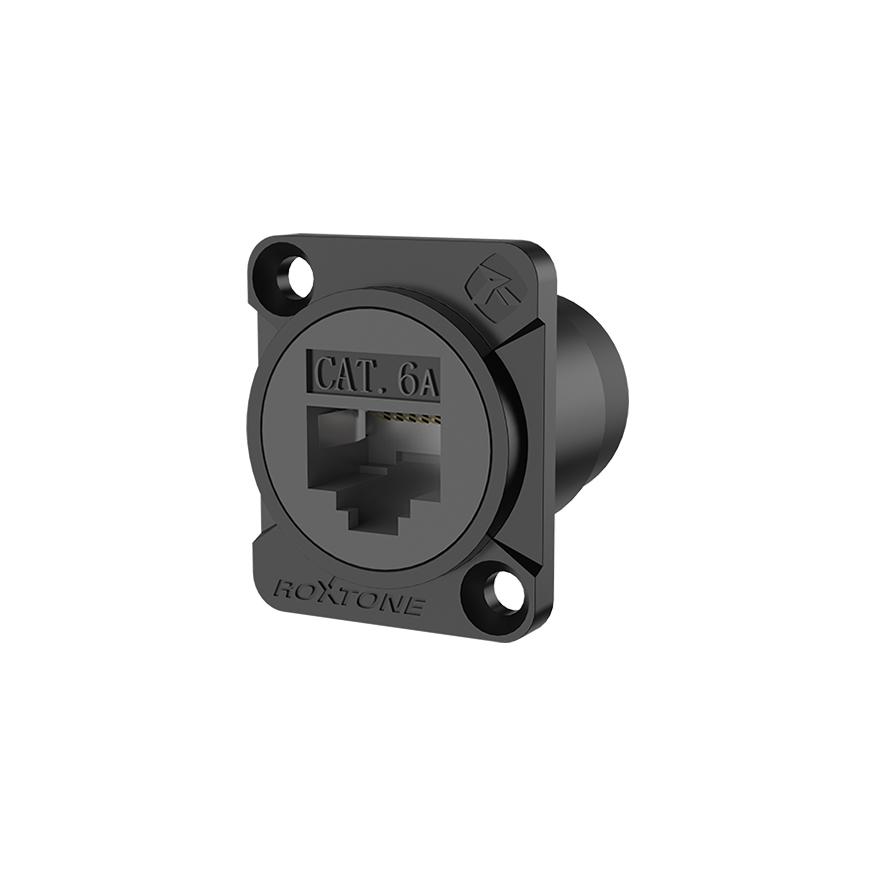

| RAE8FD-C6A-S-B | Feed through chassis RJ45 (CAT6A) adapter Black housing |

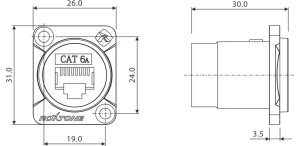

Engineering Drawing
