Features
• Feed through USB3.0 (A-A) socket
• The rear nut is installed without screws
• Round type, plug and play
• Suitable for industrial, medical, automation equipment and so on
Technical Data | |
Housing | Zinc alloy diecast |
Insert | Nylon |
Contacts | Bronze |
Contact plating | Gold |
Order Code | Description |

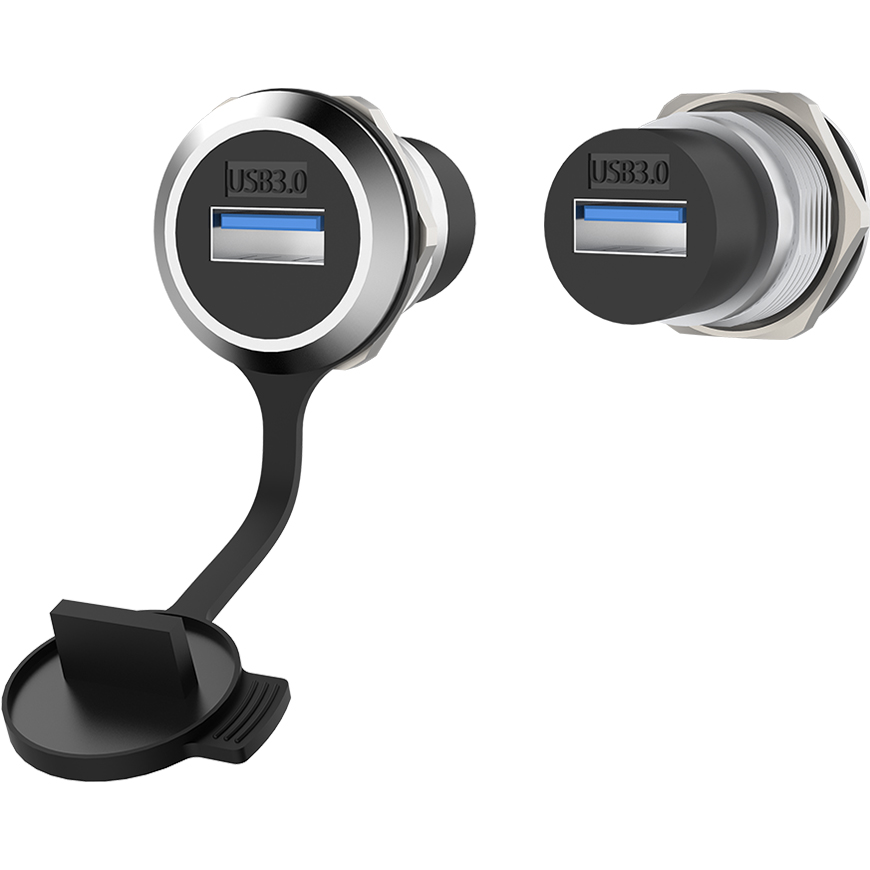

RAU3D24-C | Feed through chassis USB3.0 (A-A) adapter, Nickel plated housing |

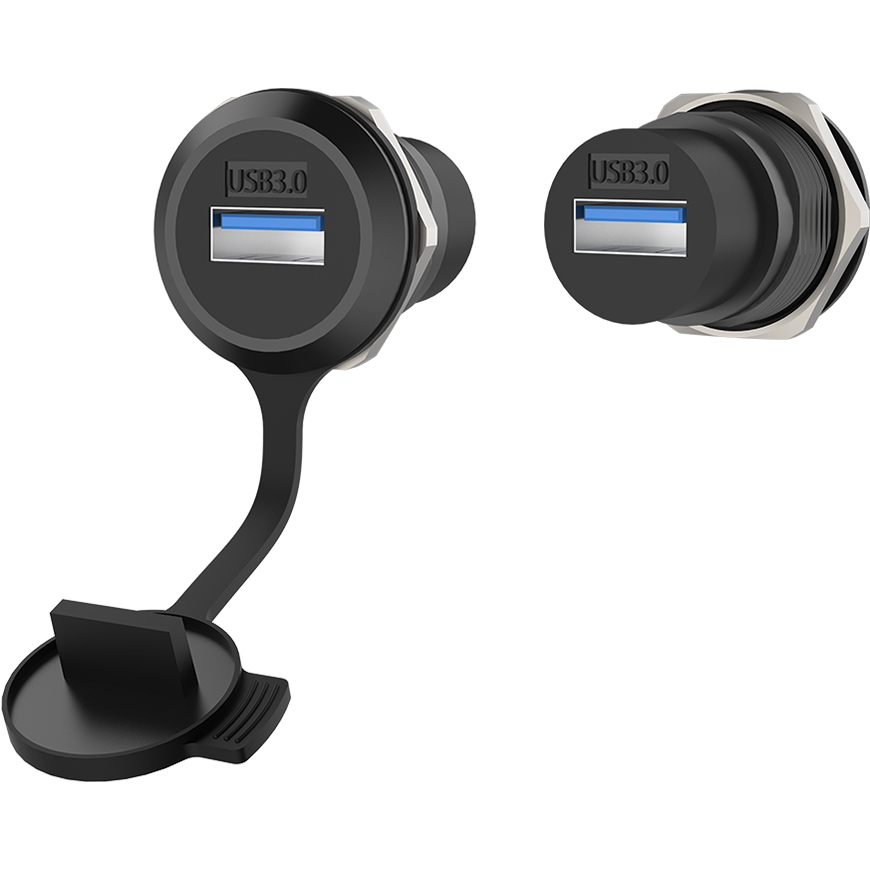

RAU3D24-B | Feed through chassis USB3.0 (A-A) adapter, Black housing |
Engineering Drawing
