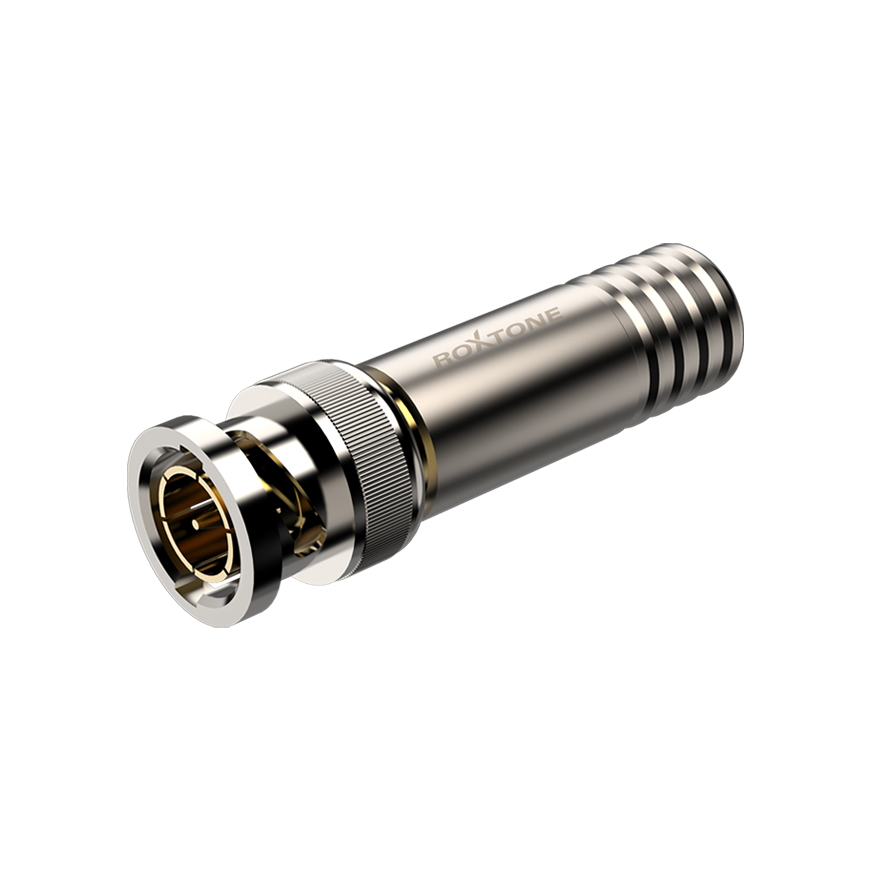

RB75G-N-HD BNC connector
Features
• High quality HD BNC connector with 24K gold plated center pin and PTFE insulation
• Brass shell with nickel plated
• Suitable for cable diameter less than 8mm
• Fully compatible with conventional BNC chassis connectors
| Technical Data | |
| Housing | Brass |
| Housing plating | Nickel |
| Contacts | Brass |
| Contacts plating | Gold |
| Insulation | PTFE |
| Insulation Resist | ≥500MΩ |
| Surge Impedance | 75Ω |
| Frequency bandwidth | ≥3G |
| Order Code | Description |
| RB75G-N | HD BNC Connector |
Engineering Drawing
