Features

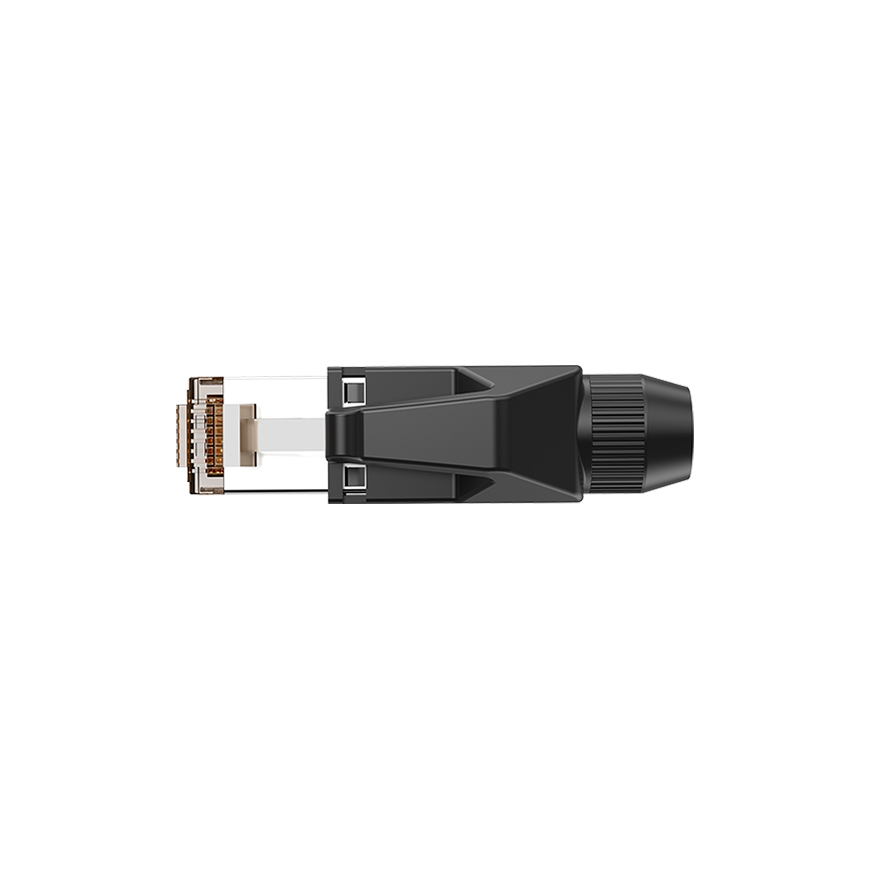

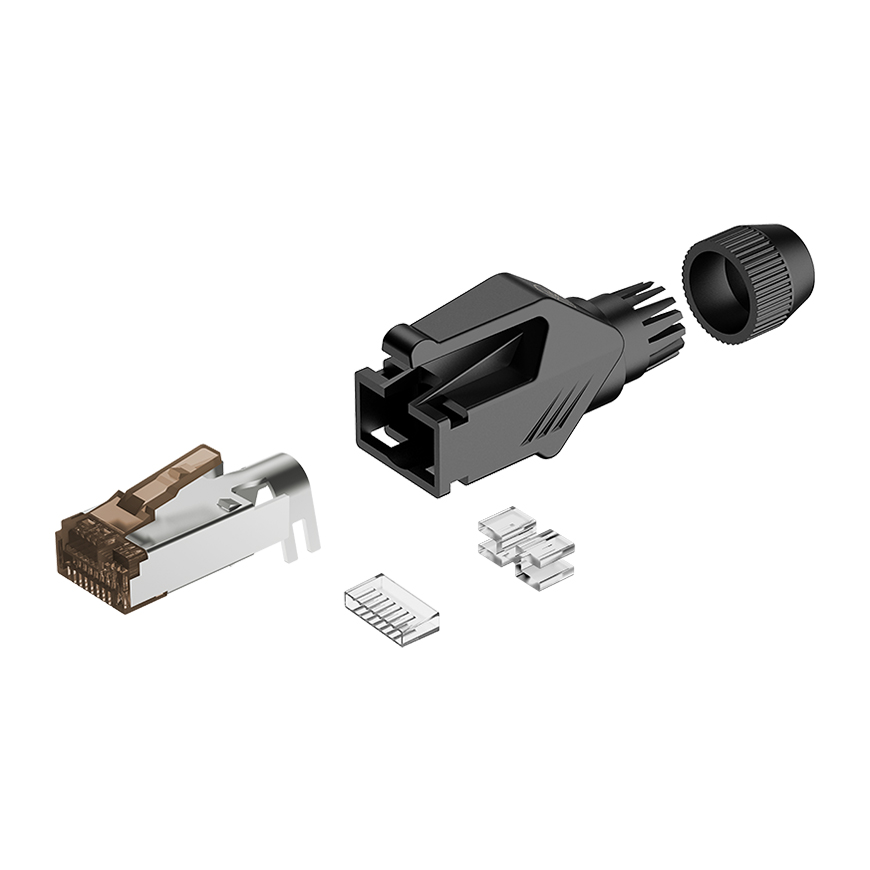

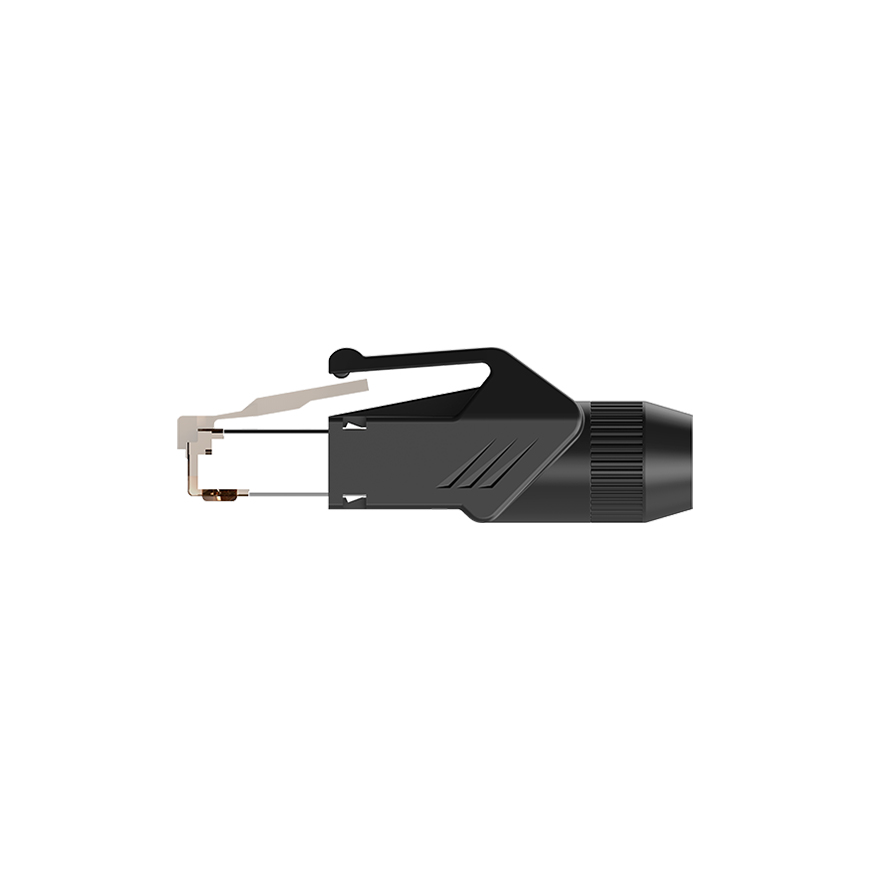

• RJ45 plug (part A) CAT5e, 150MHz, max. AWG26 , metal cable clamp holder for drain wire
• Wire core Load bar (part B) easy for assembly
• Nylon protective housing (part C) with special designed cable clamping system, Suitable for max. cable diameter 7,0mm
• Optional 10 colours bushing (part D)
• Patent protected
• Recommended cable: CAT5FB

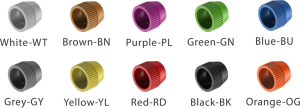

Available for 10 colours bushing
Technical Data | |
RJ45 Plug type | CAT.5e |
Contacts | Bronze |
Contacts plating | Gold |
Protective Housing | PA6 |
Engineering Drawing
