Features
• IP20 protection by dust-cap and screw-in boot design
• CAT6A field connector, full shielded, screw-in boot type,toolless termination
• GHMT verified IEC605 12-99-002 PoE type III 60W and IV 100W capability
• IEEE802.3bt type III and IV application
• Power over HDBaseT (PoHDBaseT - up to 100W) application
• High quality connectors ensure system reliability and stability by press-fit assembly process
• CAT6A patch cord component-rated
• IEC60603-7 dimensions and structural reliability complied
Technical Data | |
RJ45 Plug type | CAT6a |
Contacts | Bronze |
Contacts plating | Gold 30μm |
Protective Housing | Zinc alloy diecast |
Wire Gauge | AWG 24/7 - 22/1 |
Wire O.D. | 1.2mm - 1.65mm |
Cable O.D. | 7.0mm - 8.5mm |

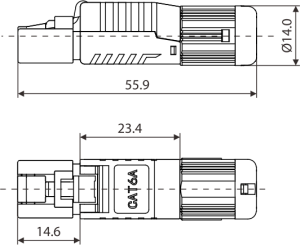

Engineering Drawing
