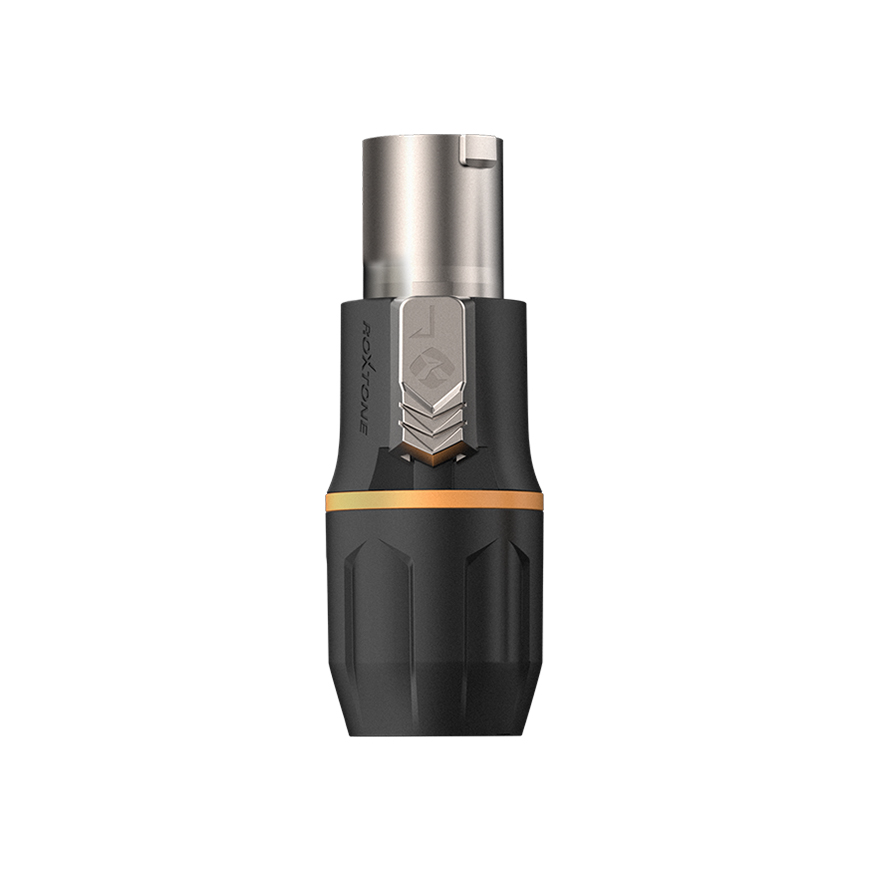

RS4FP-HD-Speaker female connector, heavy duty version

Speaker female connector, heavy duty version

Qtys：400

Unit: piece(s)

Product Detail

Product Tags

Features

• Lockable 4 pin speaker connector
• Brass contacts supply excellent contact and ensure the conductivity
• Heavy duty zinc alloy insert for longlife use(RS4FP-HD)
• Replaceable color ring on connector indicates cable of different equipment or length, easy for operation

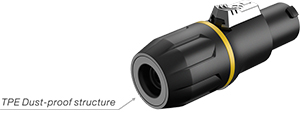

• Dust-proof design of the bushing makes the additional protection
• Patent protected

Available Color Rings

Technical Data
Housing	PA6 30% GR
Insert	PA66 20% GR
Latch	Zinc Alloy diecast
Contacts	Brass
Contacts plating	Nickel
Strain relief	POM
Color ring	PA6 30% GR
Number of contacts	4
Rated current per contact	30 A rms
Cable O.D. range	6-12 mm
Order Code	Description
RS4FP-HD	4 p ole Speaker female connector, heavy duty version
