Features
• Lockable 4 pin speaker connector, dust and water resistant according to IP66 in mated condition
• Brass contacts supply excellent contact and ensure the conductivity
• Replaceable color ring on connector indicates cable of different equipment or length, easy for cooperation
• Patent protected
Available Color Rings
Technical Data | |
Housing | PA6 30% GR |
Insert | PA6 30% GR |
Latch | Zinc Alloy diecast |
Contacts | Brass |
Contacts plating | Nickel |
Strain relief | PA6 |
Rated current per contact | 30 A rms |
Cable O.D. range | 8-10 mm |
Order Code | Description |
RS4FP-WP | 4 pole Speaker female connector |

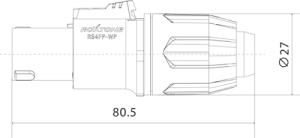

Engineering Drawing
