RX3FDWP 3 pole Heavy-Duty Waterproof XLR Sockets – IP66

• IP66 Waterproof heavy-duty XLR sockets
• Mating works with any waterproof XLR connector
• Full metal solid structure housing for long life using
• Excellent shielding effect due to the full metal housing


Product Detail

Product Tags

20230711131935_0429

Features

• IP66 Waterproof heavy-duty XLR sockets
• Mating works with any waterproof XLR connector
• Full metal solid structure housing for long life using
• Excellent shielding effect due to the full metal housing
• Equipped with a separate grounding ring to provide better protection for equipment
• Unique creative waterproof system supply the reliable and durable waterproof effect
• Passed the testing of beyond 2,000 mating cycles, due to made from high-quality raw materials

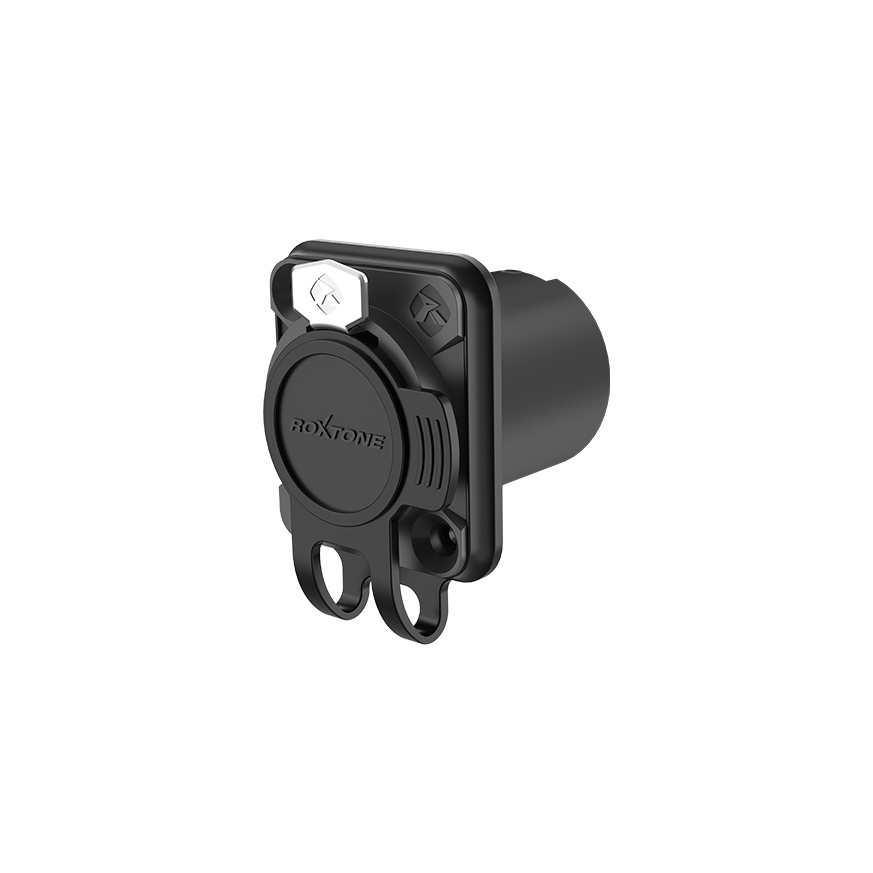

• Dust resistant cover of socket protects non-use equipment (must be purchased separately)
• Passed SGS IP66 testing
• Invention patent protecting

Technical Data
Housing Zinc alloy diecast
Insert PBT
Contacts Bronze
Contacts plating Gold
Latch Strainless steel
Dust cover Silicone
Sealing ring Silicone
Order Code Description

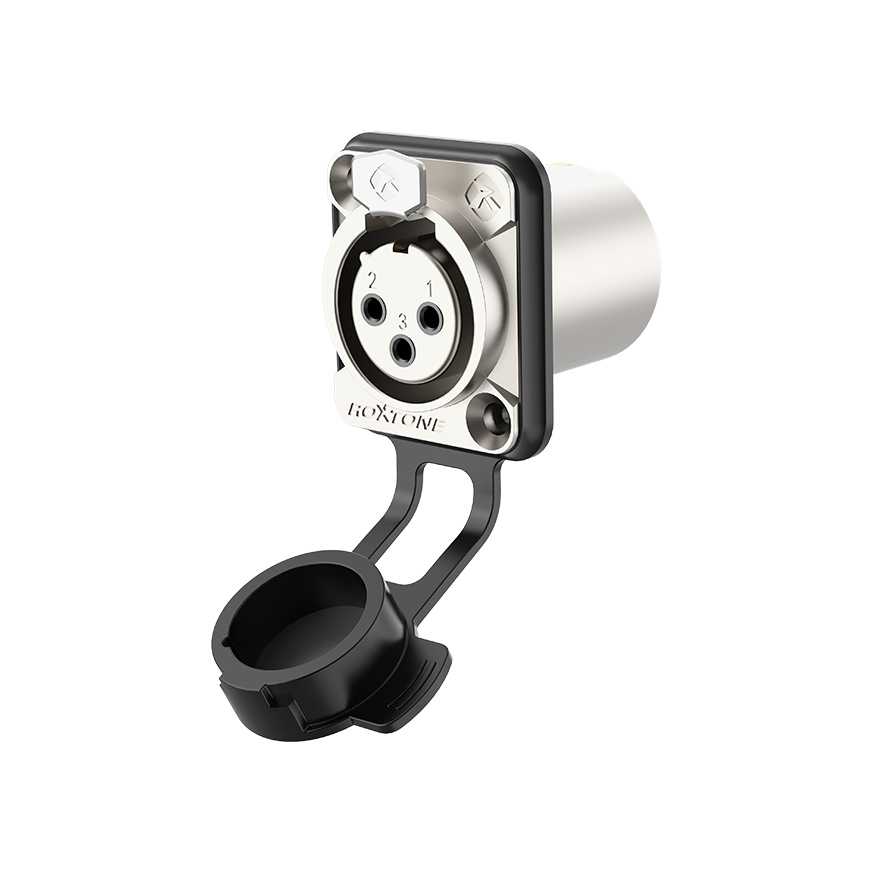

RX3FDWP-NG 3 pole XLR female socket, Nickel plated housing / Gold plated contacts

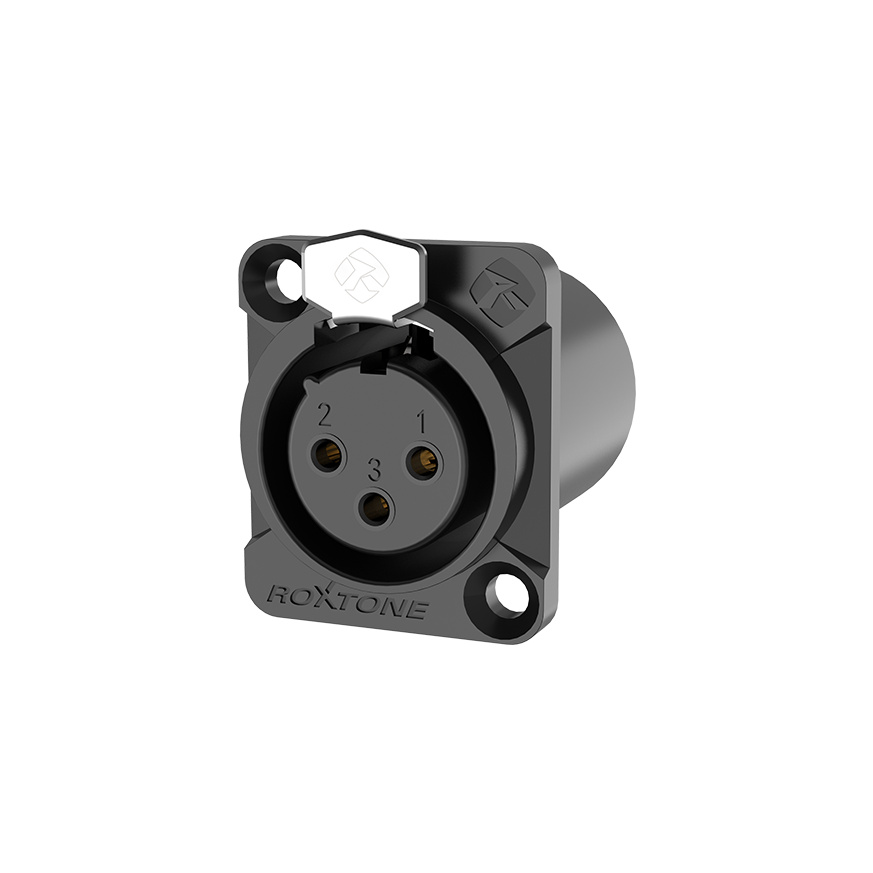

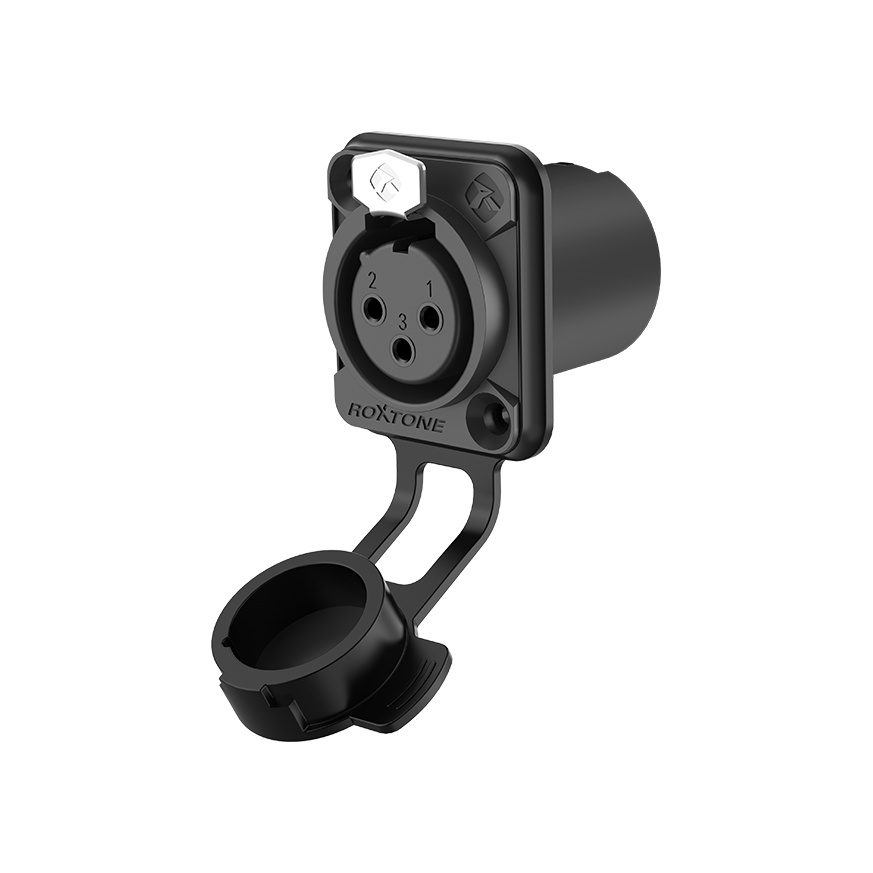

RX3FDWP-BG 3 pole XLR female socket, Black housing / Gold plated contacts

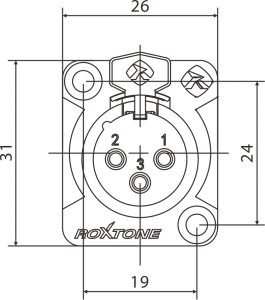

Engineering Drawing

20221019133655_3502
20221019133720_0013

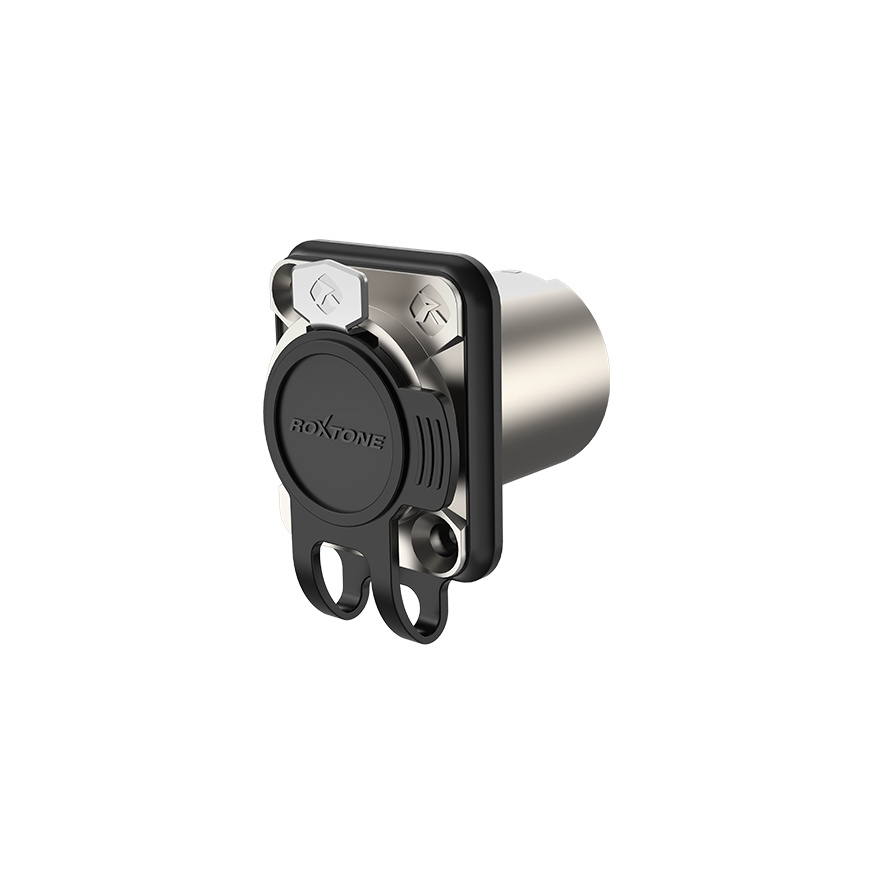

Accessories

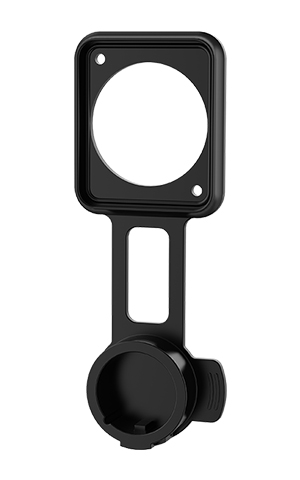

Order Code DCXF-HD
Description Silicone dust cover
20221019155554_9519
