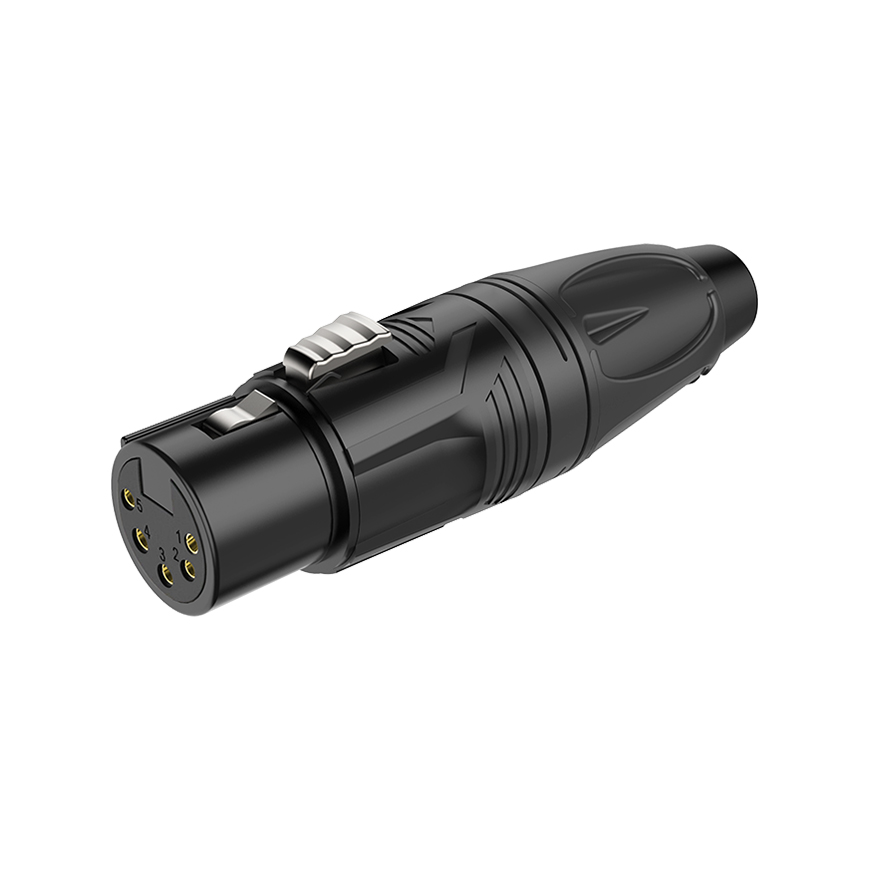

RX5F 5 pole XLR female, Nickel plated housing / Black housing
Features
• Ergonomic heavy duty design with Zinc alloy housing and PA 30% GR bushing
• Improved big button for latch lock
• Solid brass female contacts, increases conductivity and stablity
• ROXTONE brand engraved on the housing
• Replaceable color ring with a special strain-relief clamp for ease tightening the cable diameter from 3mm to 7mm
• Patent protected
Available Color Rings
| Technical Data | |
| Housing | Zinc alloy diecast |
| Insert | PBT |
| Contacts | Bronze |
| Contacts plating | Tin or Gold |
| Strain-relief clamp | POM |
| Bushing | PA 30% GR |
| Coding ring | PA6 30% GR |
| Order Code | Description |
| RX5F-NT | 5 pole XLR female, Nickel plated housing, Tin plated contacts |
| RX5F-BG | 5 pole XLR female, Black housing, Gold plated contacts |

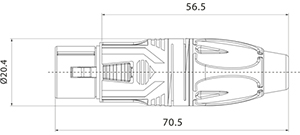

Engineering Drawing
