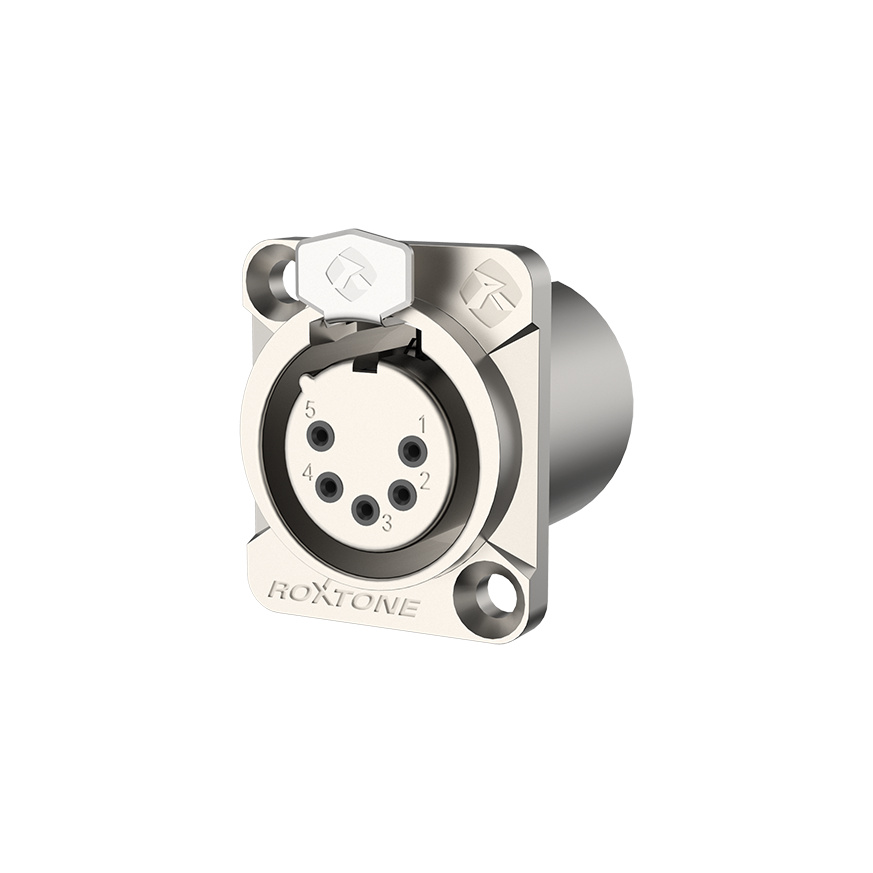

RX5FDWP 5 pole Heavy-Duty Waterproof XLR Sockets – IP66

• IP66 Waterproof heavy-duty XLR sockets
• Mating works with any waterproof XLR connector
• Full metal solid structure housing for long life using
• Excellent shielding effect due to the full metal housing


Product Detail

Product Tags

20230711135937_1523

Features

• IP66 Waterproof heavy-duty XLR sockets
• Mating works with any waterproof XLR connector
• Full metal solid structure housing for long life using
• Excellent shielding effect due to the full metal housing
• Equipped with a separate grounding ring to provide better protection for equipment
• Unique creative waterproof system supply the reliable and durable waterproof effect
• Passed the testing of beyond 2,000 mating cycles, due to made from high-quality raw materials

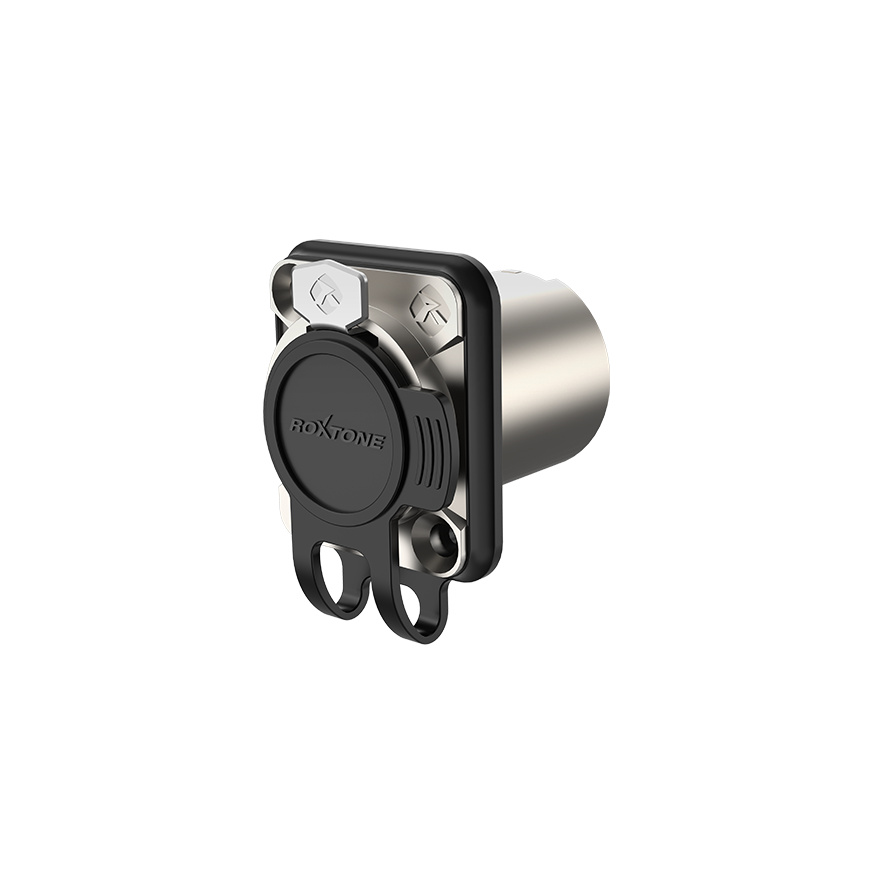

• Dust resistant cover of socket protects non-use equipment (must be purchased separately)
• Passed SGS IP66 testing, scan QR code for the test report
• Invention patent protecting

Technical Data
Housing Zinc alloy diecast
Insert PBT
Contacts Bronze
Contacts plating Gold
Latch Strainless steel
Dust cover Silicone
Sealing ring Silicone
Order Code Description
RX5FDWP-NG 5 pole XLR female socket, Nickel plated housing / Gold plated contacts
RX5FDWP-BG 5 pole XLR female socket, Black housing / Gold plated contacts

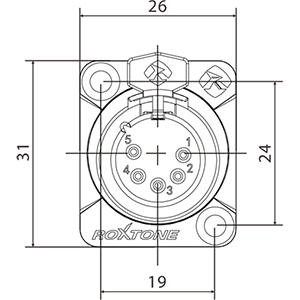

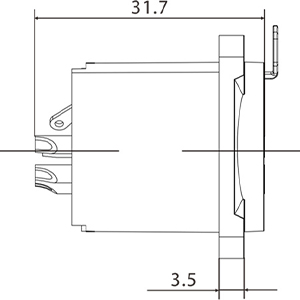

Engineering Drawing

20230711155052_2617
20230711155059_6054

Accessories

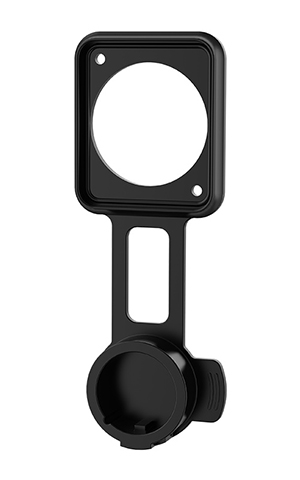

Order Code DCXF-HD
Description Silicone dust cover
20221019155554_9519
