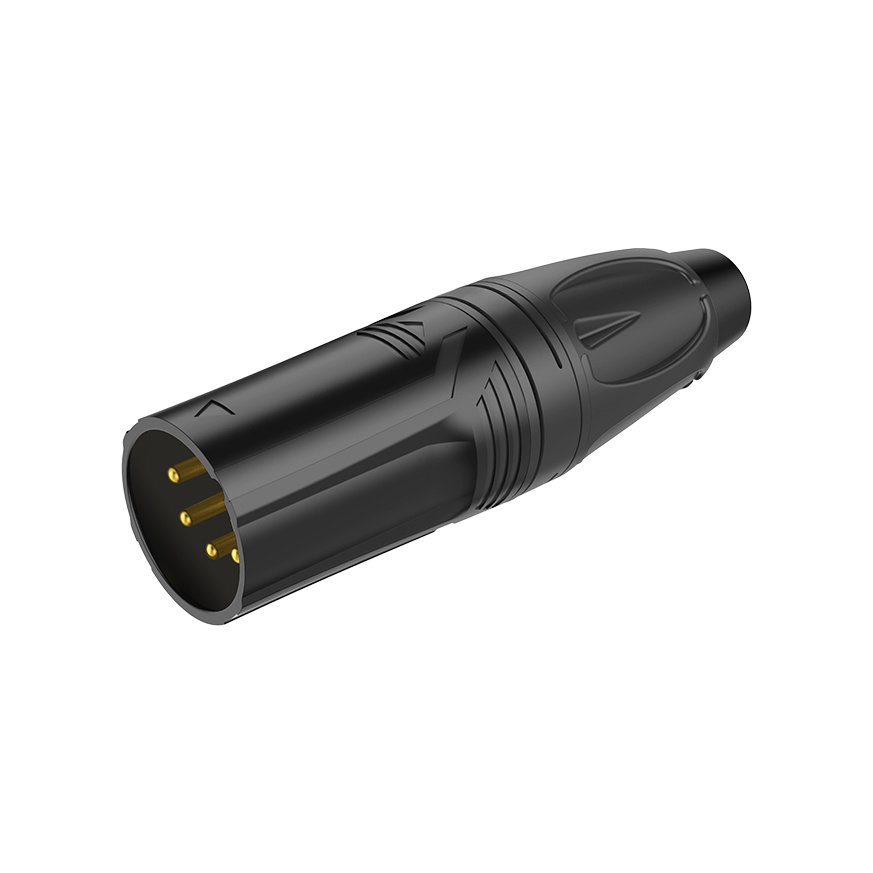

RX5M 5 pole XLR male, Nickel plated housing / Black housing
Features
• Ergonomic heavy duty design with Zinc alloy housing and PA 30% GR bushing
• Without locking “window” makes the housing more strength
• Special contacts pin with gear and fluting design to avoid moving
• ROXTONE brand engraved on the housing
• Replaceable coding ring with a special strain-relief clamp for ease tightening the cable diameter from 3mm to 7mm
• Patent protected

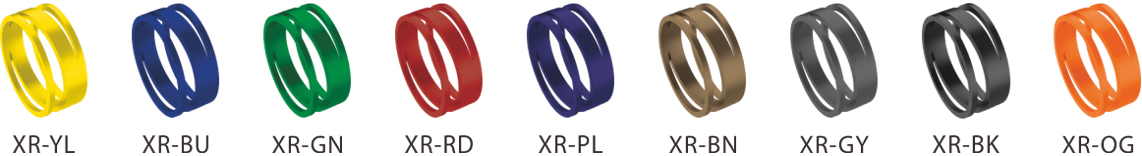

Available Color Rings
| Technical Data | |
| Housing | Zinc alloy diecast |
| Insert | PBT |
| Contacts | Brass |
| Contacts plating | Tin or Gold |
| Strain-relief clamp | POM |
| Bushing | PA 30% GR |
| Coding ring | PA6 30% GR |
| Order Code | Description |
| RX5M-NT | 5 pole XLR male, Nickel plated housing, Tin plated contacts |
| RX5M-BG | 5 pole XLR male, Black housing, Gold plated contacts |

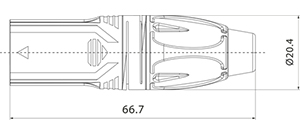

Engineering Drawing
