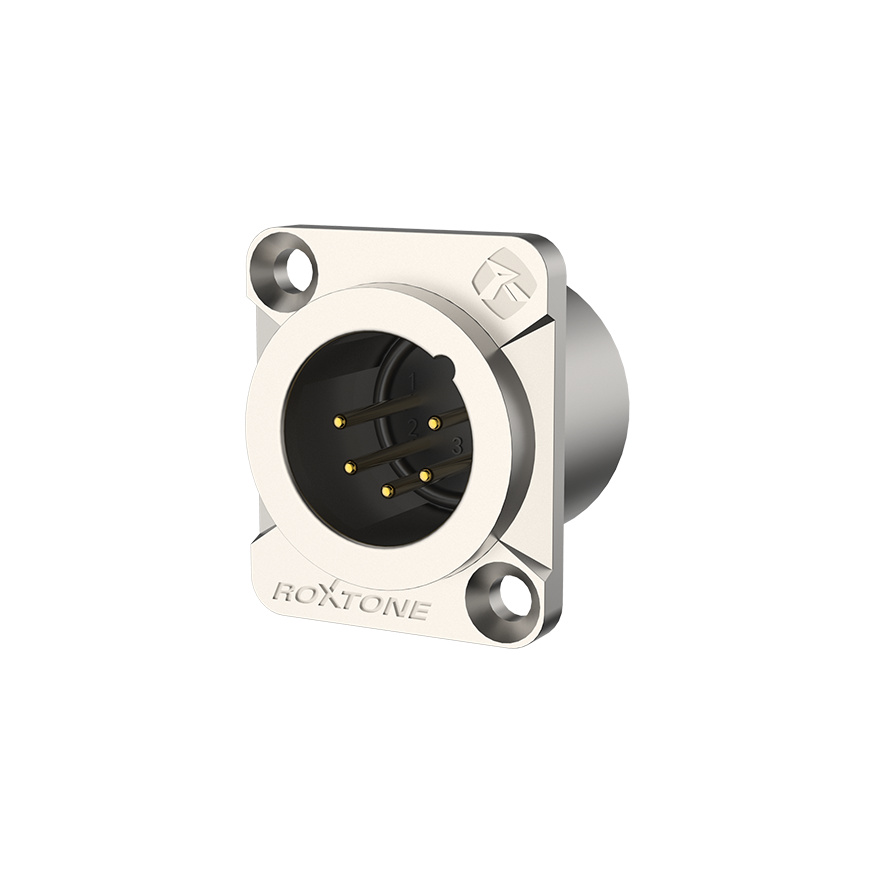

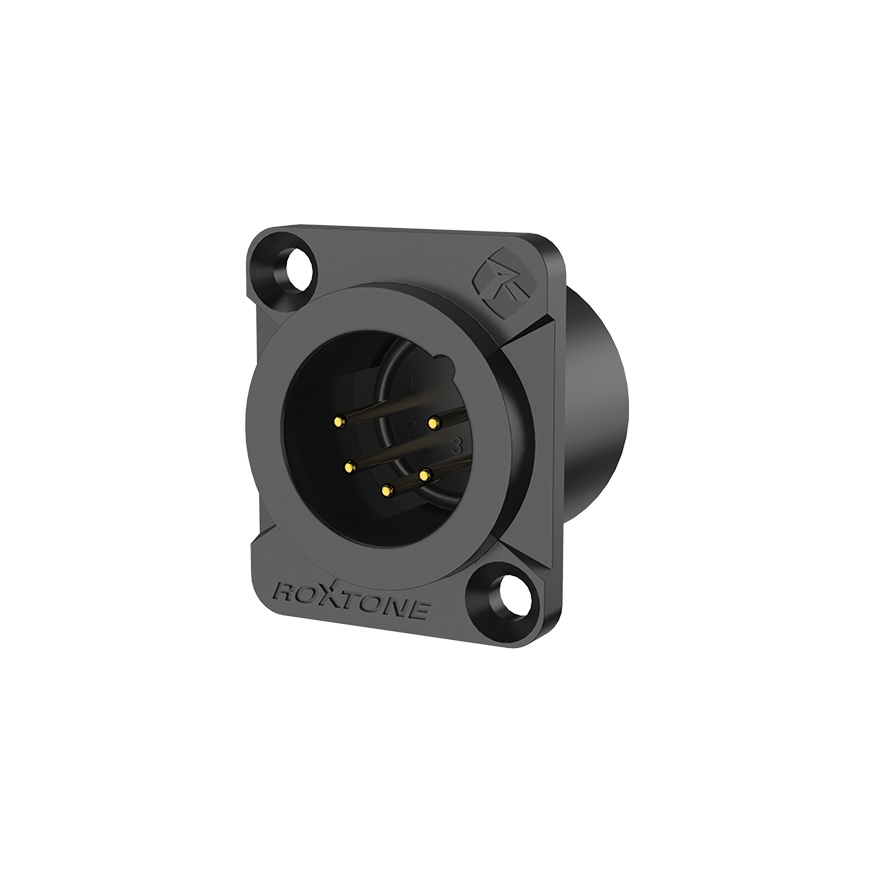

RX5MDWP 5 pole Heavy-Duty Waterproof XLR Sockets – IP66

• IP66 Waterproof heavy-duty XLR sockets

• Mating works with any waterproof XLR connector

• Full metal solid structure housing for long life using


Product Detail

Product Tags

20230711135937_1523

Features

• IP66 Waterproof heavy-duty XLR sockets

• Mating works with any waterproof XLR connector
• Full metal solid structure housing for long life using
• Excellent shielding effect due to the full metal housing
• Equipped with a separate grounding ring to provide better protection for equipment
• Unique creative waterproof system supply the reliable and durable waterproof effect
• Passed the testing of beyond 2,000 mating cycles, due to made from high-quality raw materials

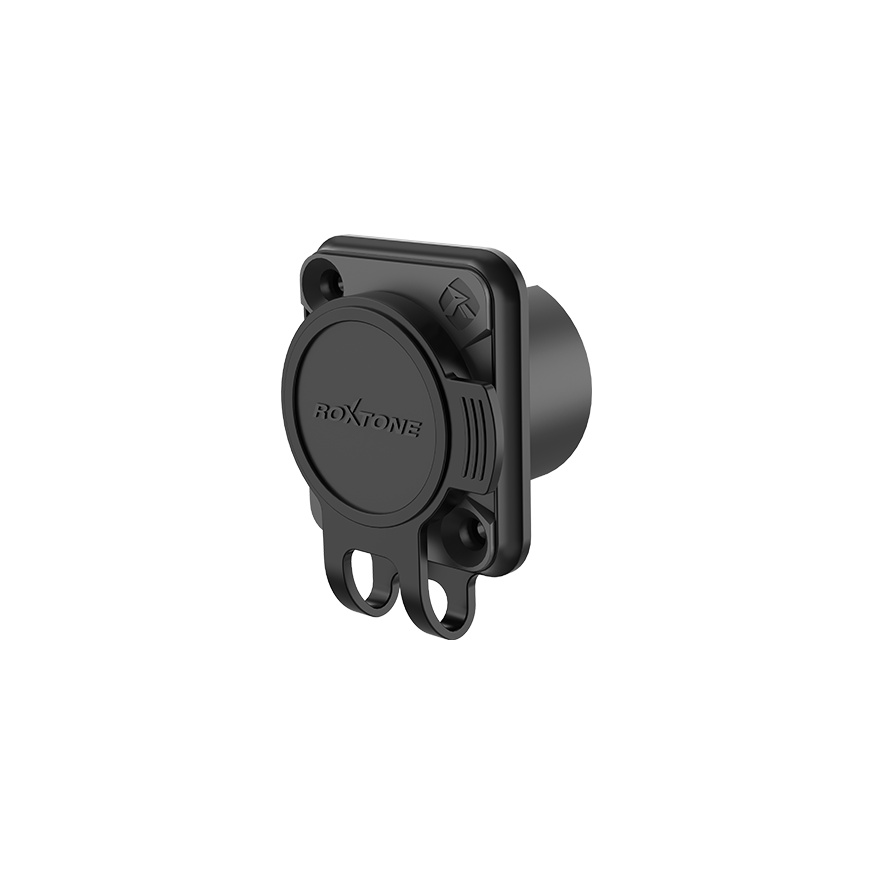

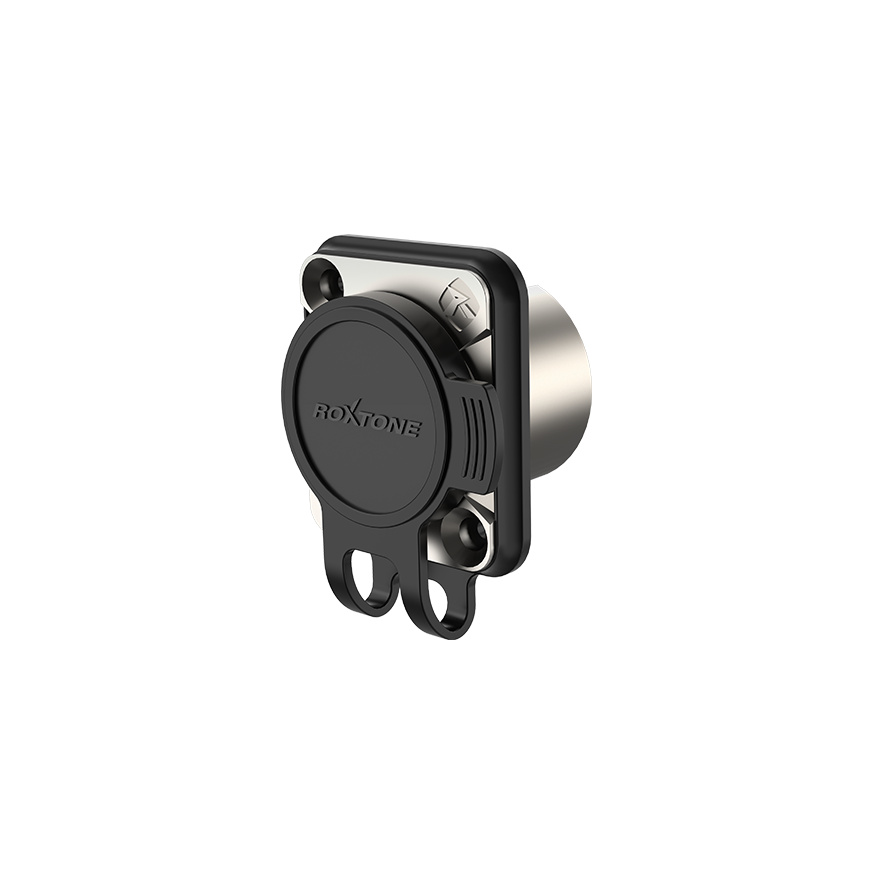

• Dust resistant cover of socket protects non-use equipment (must be purchased separately)
• Passed SGS IP66 testing, scan QR code for the test report
• Invention patent protecting

Technical Data
Housing Zinc alloy diecast
Insert P BT
Contacts Brass
Contacts plating Gold
Latch Strainless steel
Dust cover Silicone
Sealing ring Silicone

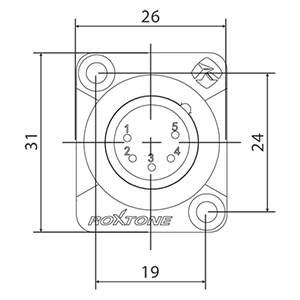

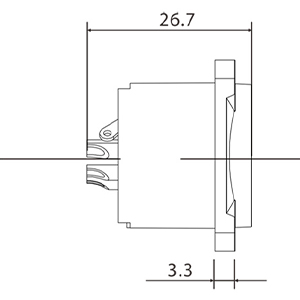

Engineering Drawing

20221024154223_4718
20221024154112_5094

Accessories

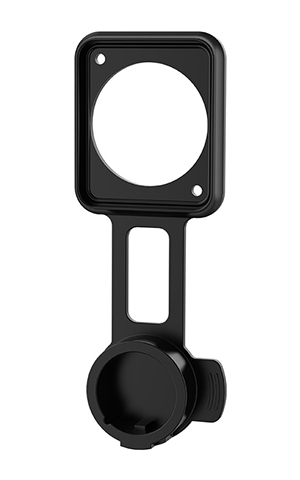

Order Code DCXF-HD
Description Silicone dust cover
20221019155554_9519
