“SFBN” series-Floor stage box, assembled with TCC series multicore audio cables

• Professional audio stage box,assembled with TCC series multicore audio cables(0,14mm²,100% shielding), flying cable covered with black(Inputs) and red(Outputs) PVC sleeving
• Matt black powder coated steel box with Chrome coated handle

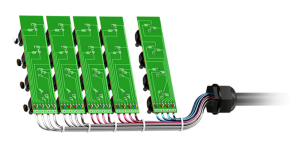

• Use PCB Module, ROXTONE XLR connectors and NEUTRIK sockets, all the numbers are moulded on the XLR code ring never removed after long time using
• Professional soldering and assembling technology, ensure the high quality signal transmission
• Custom made is available


Product Detail

Product Tags

Features

• Professional audio stage box,assembled with TCC series multicore audio cables(0,14mm²,100% shielding), flying cable covered with black(Inputs) and red(Outputs) PVC sleeving
• Matt black powder coated steel box with Chrome coated handle
• Use PCB Module, ROXTONE XLR connectors and NEUTRIK sockets, all the numbers are moulded on the XLR code ring never removed after long time using
• Professional soldering and assembling technology, ensure the high quality signal transmission
• Custom made is available

20180917140226_5625\20180917134258_7296

Much more flexible,anti-bending; protect the cable & increase the tensile Strength;

number indicated on white tubeis obvious visible and also not easily to be scratched.

Connector: Roxtone RX3F-NT & RX3M-NT

20230814183650_4261

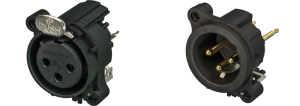

Socket: NEUTRIK® NC3FAAV1 & NC3MAV

20180917135454_5918

Cable: TCC Series
No. of inner cond.: n* x 2 x 0.14mm² * .... Number of channel
Shielding factor: 100%

20180917135837_8194

Order Code Channel Inputs Outputs Length
SFBN0800L10 8 8 - 10mt
SFBN0800L15 8 8 - 15mt
SFBN0800L20 8 8 - 20mt
SFBN0804L10 12 8 4 10mt
SFBN0804L15 12 8 4 15mt
SFBN0804L20 12 8 4 20mt
SFBN1204L10 16 12 4 10mt
SFBN1204L15 16 12 4 15mt
SFBN1204L20 16 12 4 20mt

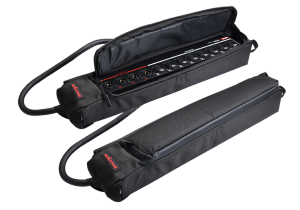

Optional stage box dustproof and waterproof bag

20230815143820_0812

Order code: RPPB001
Suitable for 12-channels SFBN stage box (SFBN0804/SFBN1200)
Protective Bag for stage box,designed for SFBN series stage box
