• Fixed installation in building services engineering
• Wiring of hi-fi system
• Grey

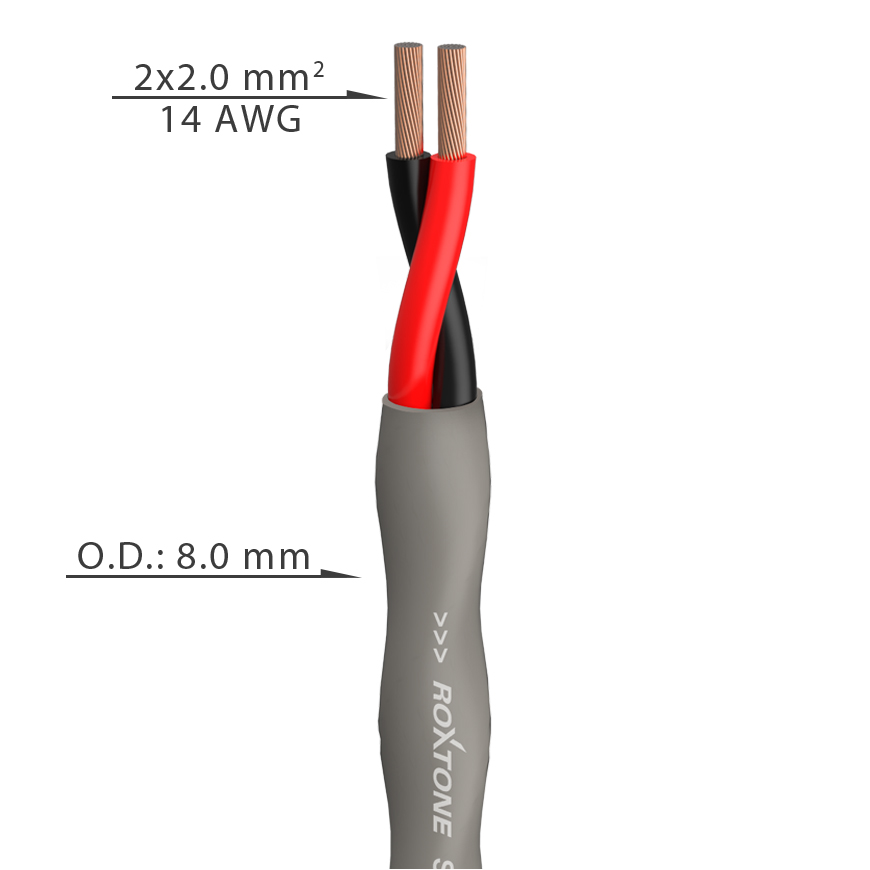

Order Code | SC215L | SC220L | SC225L | SC240L |
Jacket, diameter | PVC 7.5 mm | PVC 8.0 mm | PVC 8.5 mm | PVC 10.2 mm |
AWG | 16 | 14 | 14 | 12 |
No. of inner conductors | 2 x 1.5 mm² | 2 x 2.0 mm² | 2 x 2.5 mm² | 2 x 4.0 mm² |
Copper strand per conductor | 48 x 0.20 mm | 64 x 0.20 mm | 80 x 0.20 mm | 80 x 0.25 mm |
Cond. insulation, diameter | PVC 2.8 mm | PVC 3.0 mm | PVC 3.2 mm | PVC 4.0 mm |
Temperature range | min. -15 °C | min. -15 °C | min. -15 °C | min. -15 °C |
Temperature range | max. +70 °C | max. +70 °C | max. +70 °C | max. +70 °C |
Packaging | 100/300 m roll | 100/300 m roll | 100/300 m roll | 100/300 m roll |
Capac. cond./cond. per 1 m | 42 pF | 49 pF | 51 pF | 54 pF |
Cond. resistance per 1 m | 10.5 mΩ | 7.8 mΩ | 6.35 mΩ | 2.5 mΩ |
