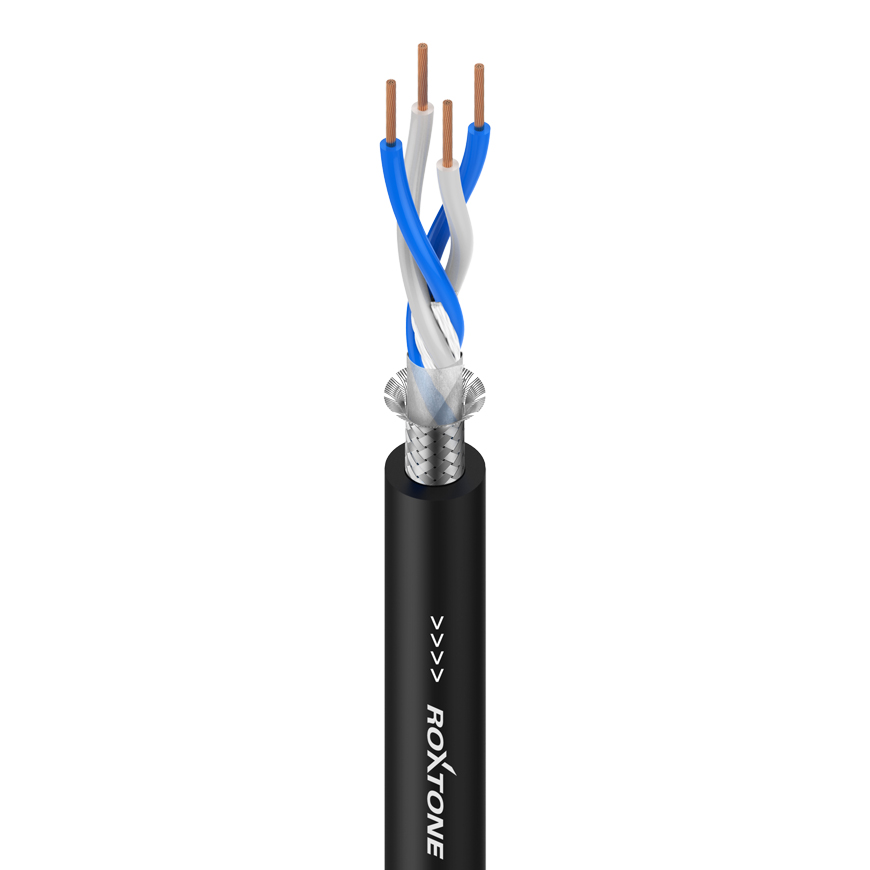

Starquad microphone cable – 24AWG – 4 x 0.22 mm² Featured Image
  • Starquad microphone cable – 24AWG – 4 x 0.22 mm²

MC040

Starquad microphone cable – 24AWG – 4 x 0.22 mm²

• Noise-free due to the crossover connection of 4 individual wires
• Very low capacitance when 4 conductors to be wired crossover
• Very good transmission safety and linear sound transmission
• The shields are super flexible and offer outstanding noise rejection


Product Detail

Product Tags

Applications

• Professional studio and microphone technology
• Connection of effect and control units needing a return signal
• Professional MIDI-technology transmission cable
• High end connection of HiFi-units

Cable Colour

• Black
• Blue

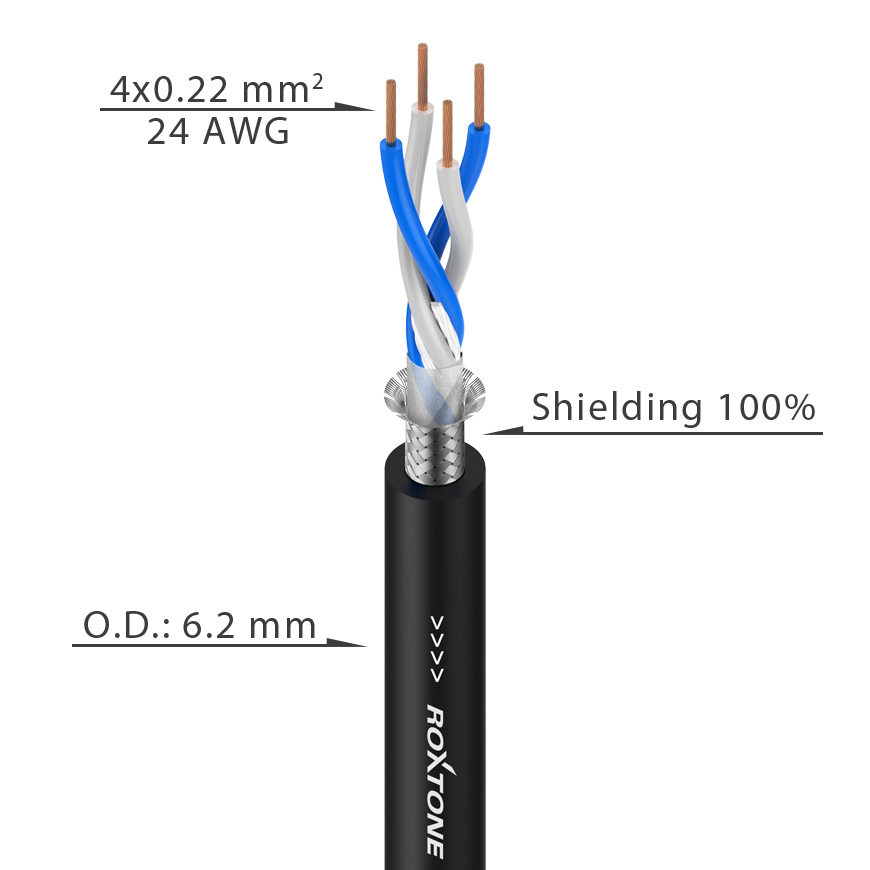

Technical Data

Jacket, diameter PVC 6.2 mm
AWG 24
No. of inner conductors 4 x 0.22 mm²
Copper strand per conductor 28 x 0.10 mm
Conductor insulation PE 1.40 mm
Shielding tin plated copper braided shielding with 128 x 0.10mm
Shielding factor 95 %
Temperature range min. -20°C
Temperature range max. +70°C
Packaging 100/300 m roll

Electrical Data

Capac. cond./cond. per 1 m 49 pF
Capac. cond./shield. per 1 m 92 pF
Cond. resistance per 1 m 80 mΩ
Shield. resistance per 1 m 23.2 mΩ
